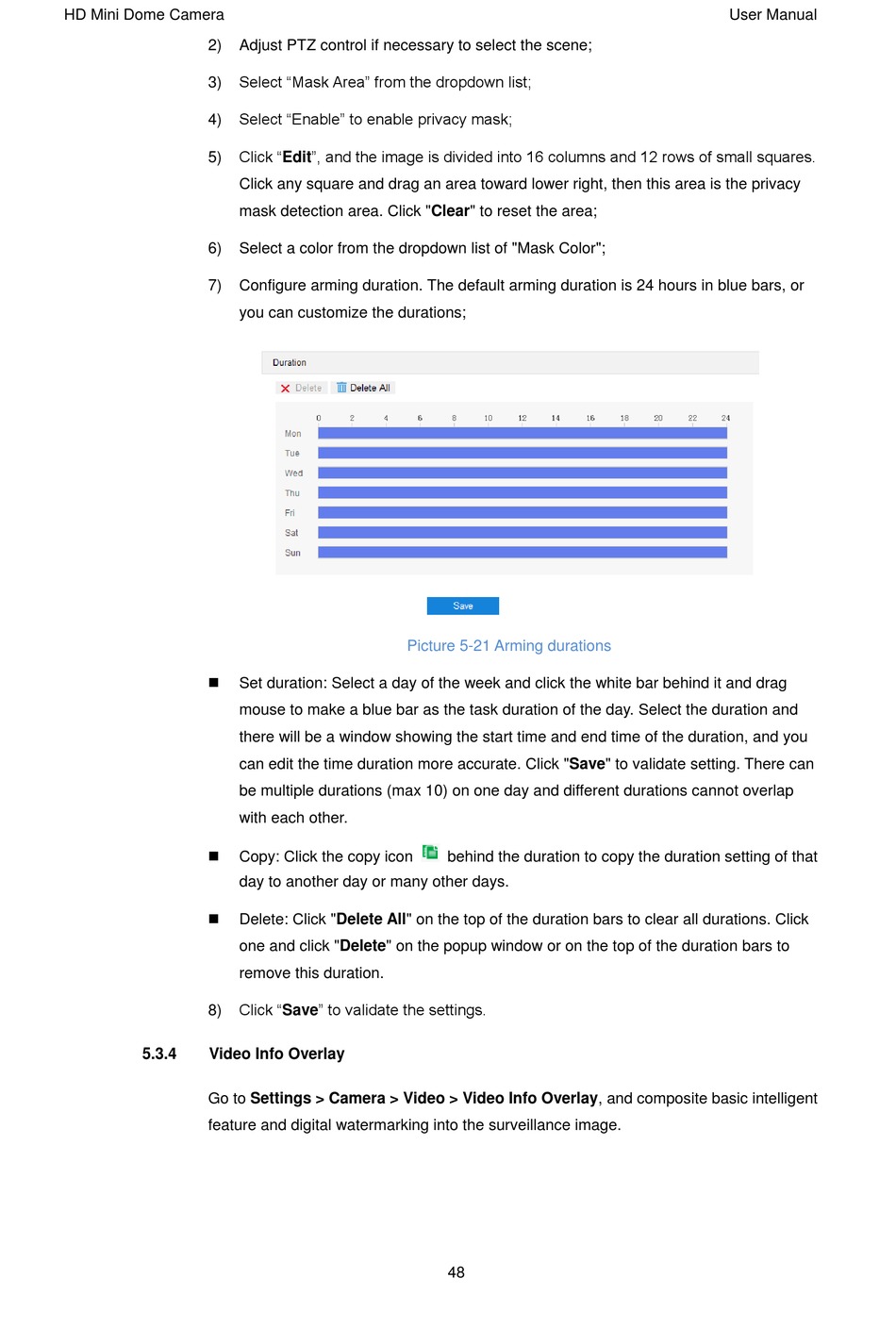

Video Info Overlay - Kedacom IPC4X2 Series User Manual

HD Mini Dome Camera
2)
3)
4)
5)
6)
7)



8)
5.3.4

Video Info Overlay

Go to Settings > Camera > Video > Video Info Overlay, and composite basic intelligent
feature and digital watermarking into the surveillance image.
Adjust PTZ control if necessary to select the scene;
Select "Mask Area" from the dropdown list;
Select "Enable" to enable privacy mask;
Click "Edit", and the image is divided into 16 columns and 12 rows of small squares.
Click any square and drag an area toward lower right, then this area is the privacy
mask detection area. Click "Clear" to reset the area;
Select a color from the dropdown list of "Mask Color";
Configure arming duration. The default arming duration is 24 hours in blue bars, or
you can customize the durations;
Set duration: Select a day of the week and click the white bar behind it and drag
mouse to make a blue bar as the task duration of the day. Select the duration and
there will be a window showing the start time and end time of the duration, and you
can edit the time duration more accurate. Click "Save" to validate setting. There can
be multiple durations (max 10) on one day and different durations cannot overlap
with each other.
Copy: Click the copy icon
day to another day or many other days.
Delete: Click "Delete All" on the top of the duration bars to clear all durations. Click
one and click "Delete" on the popup window or on the top of the duration bars to
remove this duration.
Click "Save" to validate the settings.
Picture 5-21 Arming durations
behind the duration to copy the duration setting of that
48
User Manual
