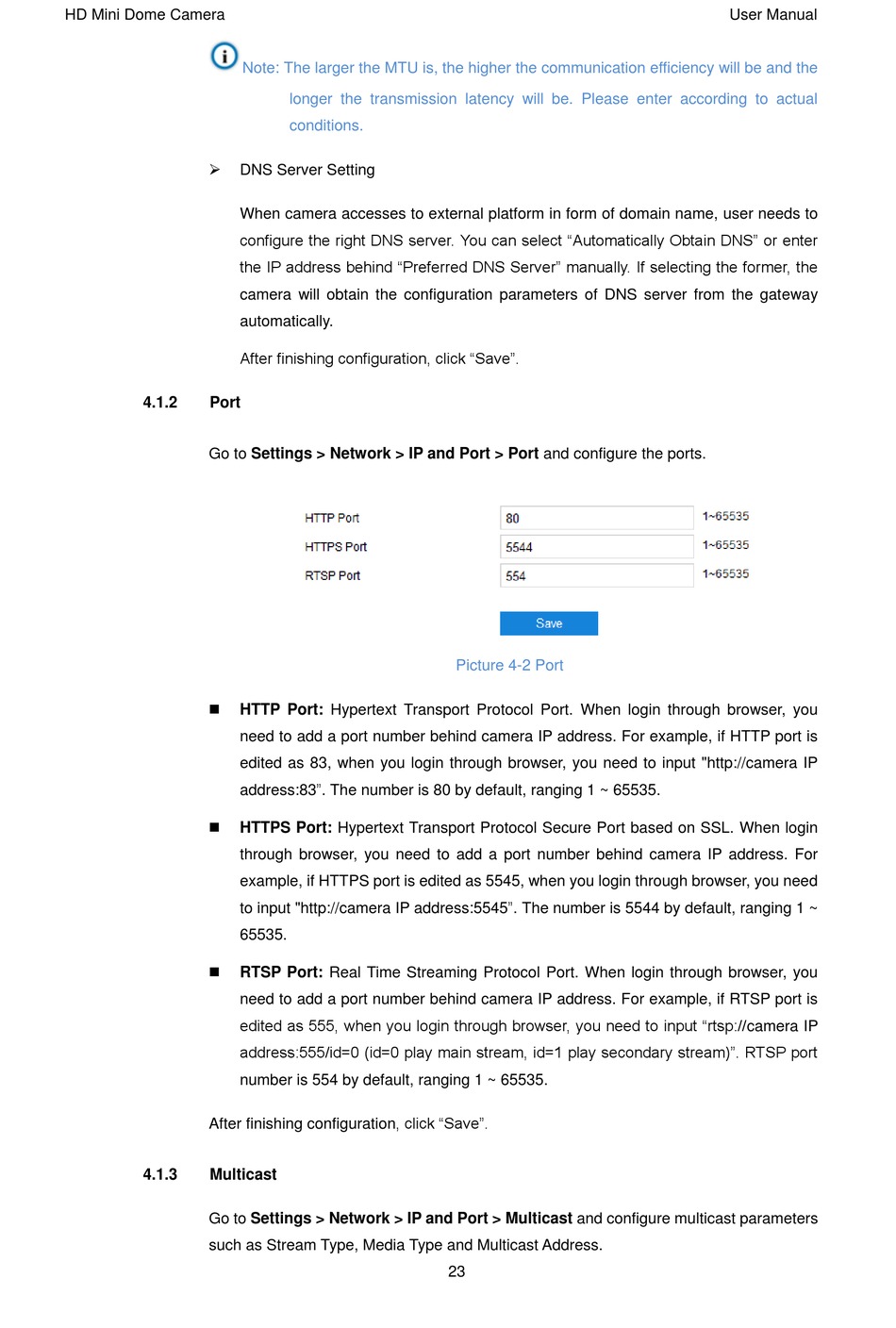

Port; Multicast - Kedacom IPC4X2 Series User Manual

HD Mini Dome Camera

4.1.2

Port

Go to Settings > Network > IP and Port > Port and configure the ports.



After finishing configuration, click "Save".
4.1.3

Multicast

Go to Settings > Network > IP and Port > Multicast and configure multicast parameters
such as Stream Type, Media Type and Multicast Address.
Note: The larger the MTU is, the higher the communication efficiency will be and the
longer the transmission latency will be. Please enter according to actual
conditions.
DNS Server Setting
When camera accesses to external platform in form of domain name, user needs to
configure the right DNS server. You can select "Automatically Obtain DNS" or enter
the IP address behind "Preferred DNS Server" manually. If selecting the former, the
camera will obtain the configuration parameters of DNS server from the gateway
automatically.
After finishing configuration, click "Save".
HTTP Port: Hypertext Transport Protocol Port. When login through browser, you
need to add a port number behind camera IP address. For example, if HTTP port is
edited as 83, when you login through browser, you need to input "http://camera IP
address:83". The number is 80 by default, ranging 1 ~ 65535.
HTTPS Port: Hypertext Transport Protocol Secure Port based on SSL. When login
through browser, you need to add a port number behind camera IP address. For
example, if HTTPS port is edited as 5545, when you login through browser, you need
to input "http://camera IP address:5545". The number is 5544 by default, ranging 1 ~
65535.
RTSP Port: Real Time Streaming Protocol Port. When login through browser, you
need to add a port number behind camera IP address. For example, if RTSP port is
edited as 555, when you login through browser, you need to input "rtsp://camera IP
address:555/id=0 (id=0 play main stream, id=1 play secondary stream)". RTSP port
number is 554 by default, ranging 1 ~ 65535.
Picture 4-2 Port
23
