10) Max Tracing Duration: Configure the tracking time on moving people, range being 10
11) Dwell Time After Tracking Finished: Configure the interval between tracking different
12) Show Tracking Frame: Select if necessary;
13) Select linkage type(s), which is/are the alarm output method(s) when an event
14) Set arming duration: the default is 24 hours displaying in blue bar, or user can
Area Setting: to set tracking area. Click "Edit" and click mouse to draw a closed area
made up of 3 to 6 points in the scene. Right click or click the starting or end point to
close the area. Click "Stop" to finish editing and click "Clear All" to clear setting;
Lower Limit for Target Height: Configure the minimum target height, range being 60 ~
200 pixels;
Target Height Ratio: Select a ratio from the dropdown list;
~ 600s;
moving people, range being 5 ~ 30s;
triggers an alarm;
customize durations. The maximum allowed number of durations is 10 on one day
and different durations cannot overlap with each other;

Set duration: configure arming durations according to actual requirements.

Click the blue bar to pop up a window for editing the accurate start time and
end time; click "Save" to validate setting.

Click any duration and there will be small white squares on the 2 ends of it.
Put the mouse on any whit square, left-click and drag the edit the start time
and end time.

Select the timeline of any day and delete the default blue bar. Left click on
the mouse and drag on the timeline from left to right to form a blue bar,
above which it shows the start time and end time.

Copy duration: click the copy icon
durations on the day to one or several other days.

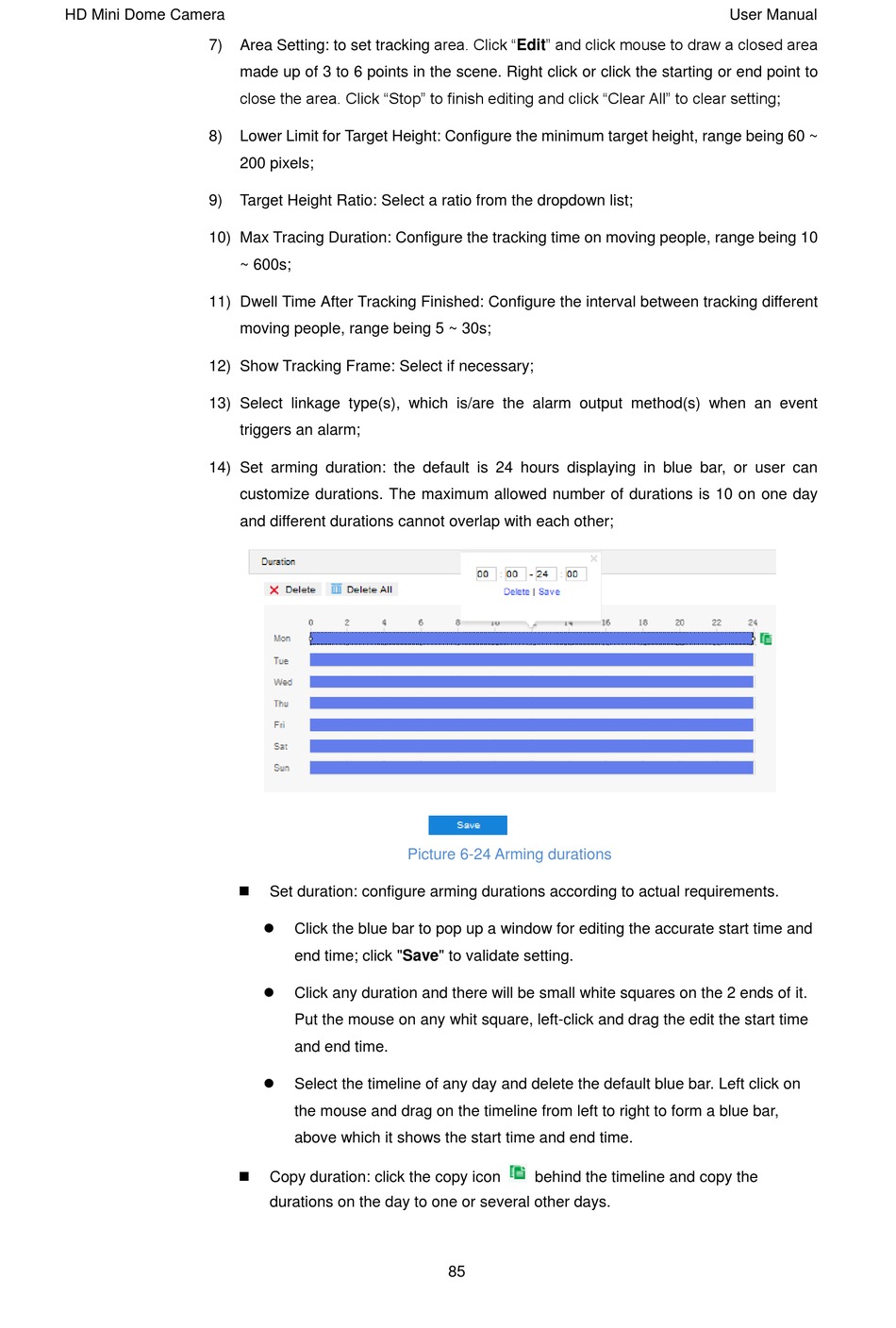

Picture 6-24 Arming durations
behind the timeline and copy the
