Kedacom IPC4X2 Series User Manual page 88

Hd mini dome camera
Table of Contents

Advertisement

HD Mini Dome Camera
2)
3)
4)
5)
6)

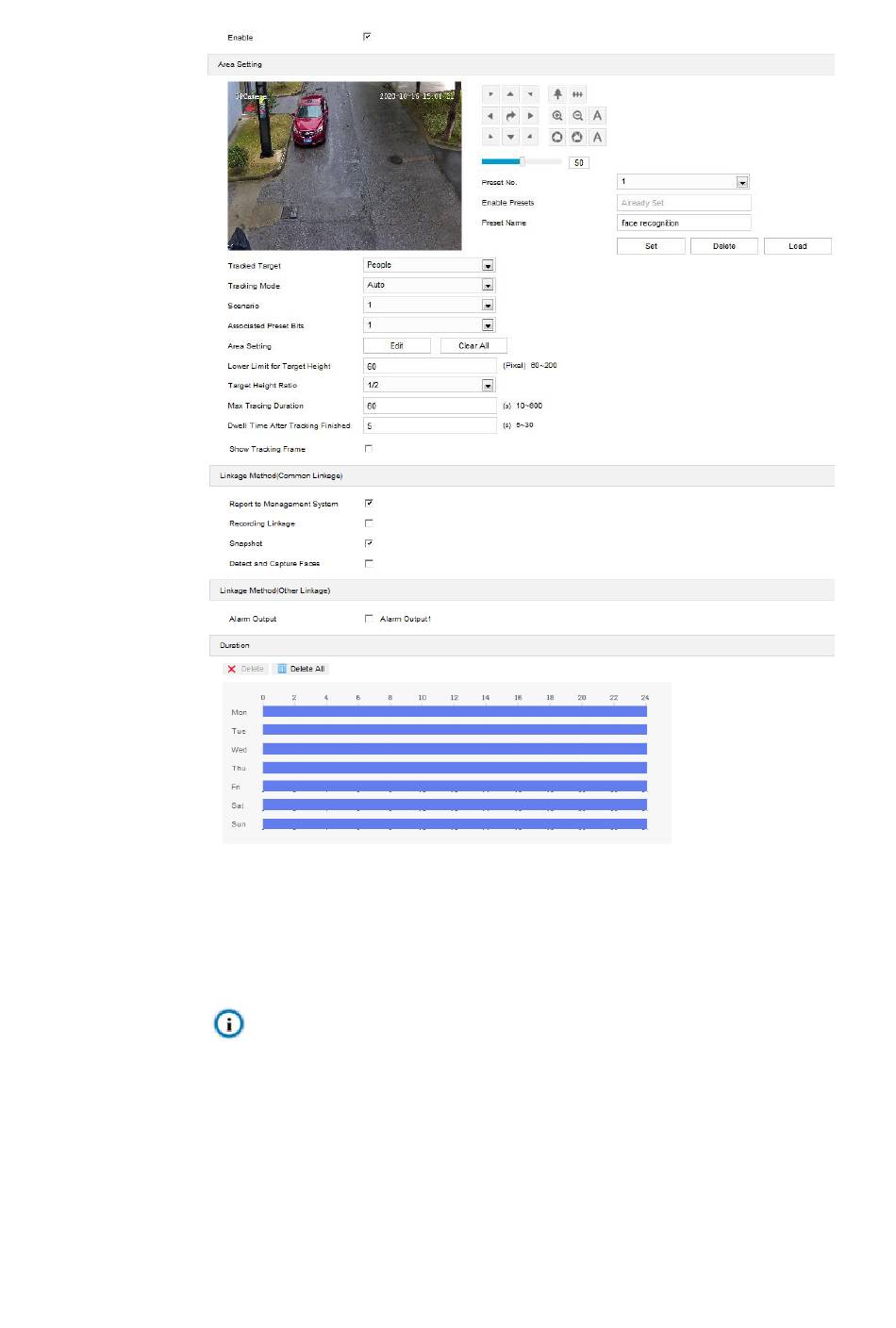

Picture 6-23 Auto human tracking
Select "Enable";
Adjust the surveillance scene through the PTZ, or set and load presets;
On the dropdown list of "Tracking Mode", select "Auto" or "Smart tracing";
Note: If selecting "Smart tracing", on "Motion Detection" and "Guard Line" interfaces,
select "Smart tracking" in the linkage method part, and when these events
occur, smart tracing will be triggered.
On the dropdown list of "Scenario", select a scenario number. Once only one can be
selected and it supports maximum 31 scenarios;
On the dropdown list of "Associated Preset Bits", select a preset number;
84
