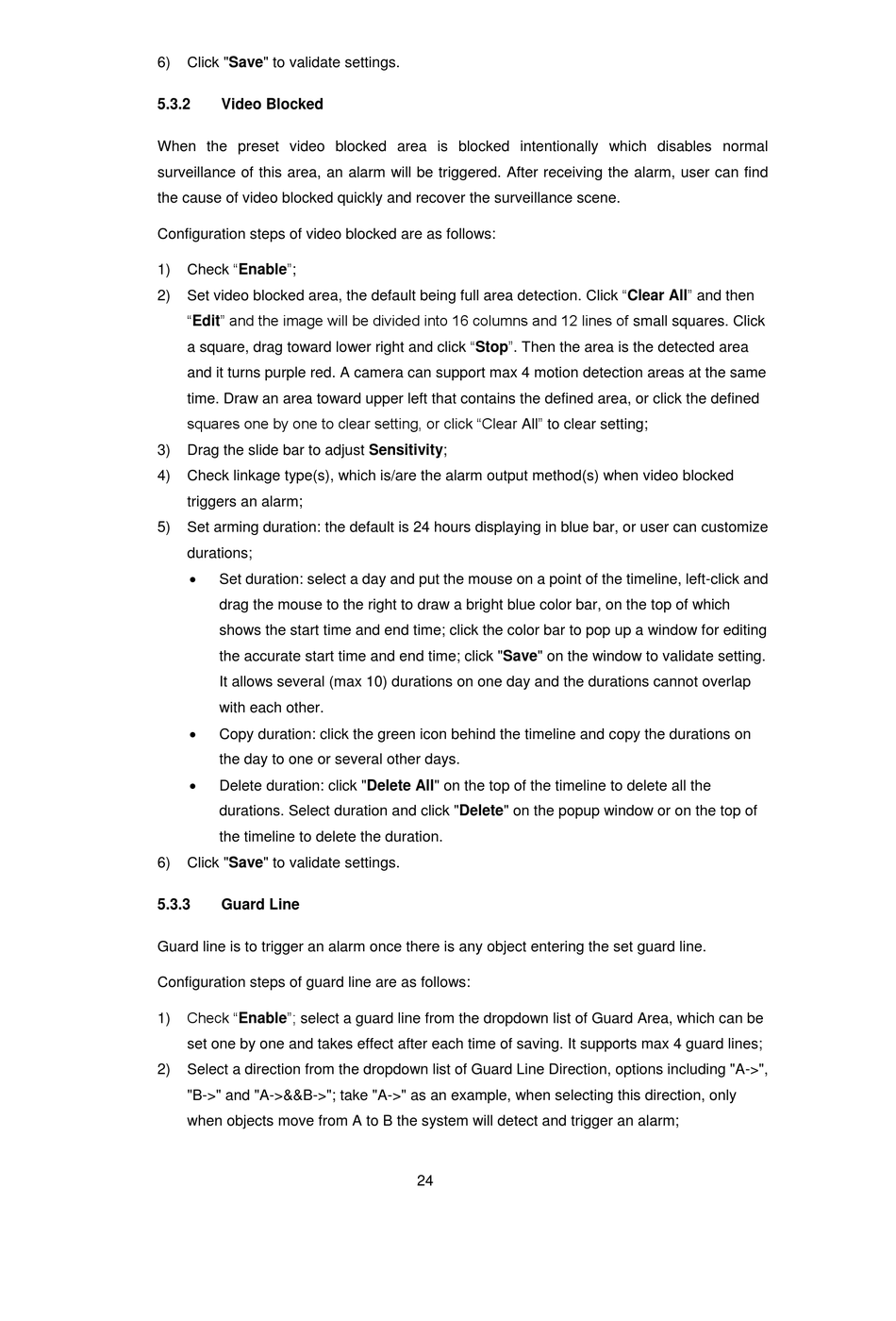

6) Click "Save" to validate settings.
5.3.2

Video Blocked

When the preset video blocked area is blocked intentionally which disables normal
surveillance of this area, an alarm will be triggered. After receiving the alarm, user can find
the cause of video blocked quickly and recover the surveillance scene.
Configuration steps of video blocked are as follows:
Check "Enable";
1)
Set video blocked area, the default being full area detection. Click "Clear All" and then
2)
"Edit" and the image will be divided into 16 columns and 12 lines of small squares. Click
a square, drag toward lower right and click "Stop". Then the area is the detected area
and it turns purple red. A camera can support max 4 motion detection areas at the same
time. Draw an area toward upper left that contains the defined area, or click the defined
squares one by one to clear setting, or click "Clear All" to clear setting;
3) Drag the slide bar to adjust Sensitivity;
4) Check linkage type(s), which is/are the alarm output method(s) when video blocked
triggers an alarm;
5) Set arming duration: the default is 24 hours displaying in blue bar, or user can customize
durations;

Set duration: select a day and put the mouse on a point of the timeline, left-click and
drag the mouse to the right to draw a bright blue color bar, on the top of which
shows the start time and end time; click the color bar to pop up a window for editing
the accurate start time and end time; click "Save" on the window to validate setting.
It allows several (max 10) durations on one day and the durations cannot overlap
with each other.

Copy duration: click the green icon behind the timeline and copy the durations on
the day to one or several other days.

Delete duration: click "Delete All" on the top of the timeline to delete all the
durations. Select duration and click "Delete" on the popup window or on the top of
the timeline to delete the duration.
6) Click "Save" to validate settings.
5.3.3

Guard Line

Guard line is to trigger an alarm once there is any object entering the set guard line.
Configuration steps of guard line are as follows:
Check "Enable"; select a guard line from the dropdown list of Guard Area, which can be
1)
set one by one and takes effect after each time of saving. It supports max 4 guard lines;
2) Select a direction from the dropdown list of Guard Line Direction, options including "A->",
"B->" and "A->&&B->"; take "A->" as an example, when selecting this direction, only
when objects move from A to B the system will detect and trigger an alarm;
24
