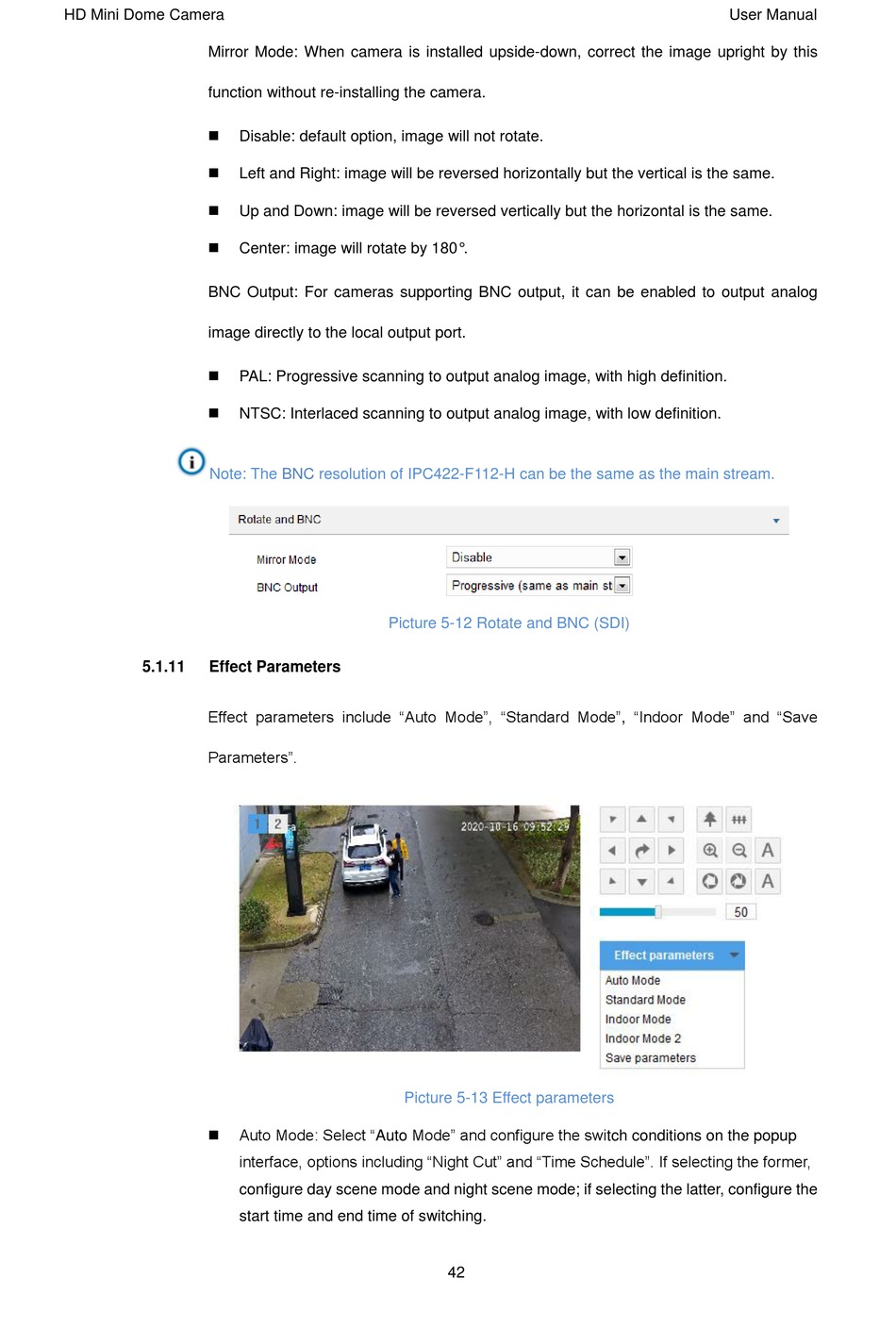

Effect Parameters - Kedacom IPC4X2 Series User Manual

HD Mini Dome Camera
Mirror Mode: When camera is installed upside-down, correct the image upright by this
function without re-installing the camera.




BNC Output: For cameras supporting BNC output, it can be enabled to output analog
image directly to the local output port.


Note: The
5.1.11

Effect Parameters

Effect parameters include "Auto Mode", "Standard Mode", "Indoor Mode" and "Save
Parameters".

Disable: default option, image will not rotate.
Left and Right: image will be reversed horizontally but the vertical is the same.
Up and Down: image will be reversed vertically but the horizontal is the same.
Center: image will rotate by 180° .
PAL: Progressive scanning to output analog image, with high definition.
NTSC: Interlaced scanning to output analog image, with low definition.
BNC resolution of IPC422-F112-H can be the same as the main stream.
Picture 5-12 Rotate and BNC (SDI)
Picture 5-13 Effect parameters
Auto Mode: Select "Auto Mode" and configure the switch conditions on the popup
interface, options including "Night Cut" and "Time Schedule". If selecting the former,
configure day scene mode and night scene mode; if selecting the latter, configure the
start time and end time of switching.
42
