HD Mini Dome Camera
4.

Network

Go to Settings > Network to configure IP and Port, Access Protocol and Other Protocols.

4.1 IP and Port

4.1.1

LAN

Go to Settings > Network > IP and Port > LAN and configure network parameters,
including IP address, subnet mask, default gateway and etc.

IP Address Configuration
If selecting "IPV4", the mode includes "Static" or "DHCP". When selecting static
mode, you need to configure IP Address, Subnet Mask and Default Gateway
manually; when selecting DHCP mode, the system obtains IP address automatically;
Note: When filling the IPV4 IP address, click "Test" to confirm if the address is
available.
If selecting "IPV6", the mode includes "Manual" and "Automatically obtain". Under
the "Automatically obtain" mode, the IPV6 address is distributed from server,
gateway or router. Under "Manual" mode, enter the IP address, subnet mask and
default gateway according to actual conditions.
MTU: Maximum transmission unit, the maximum size of data packet transmitted
through TCP/UDP protocol, ranging 500 ~ 1500, by default 1500.

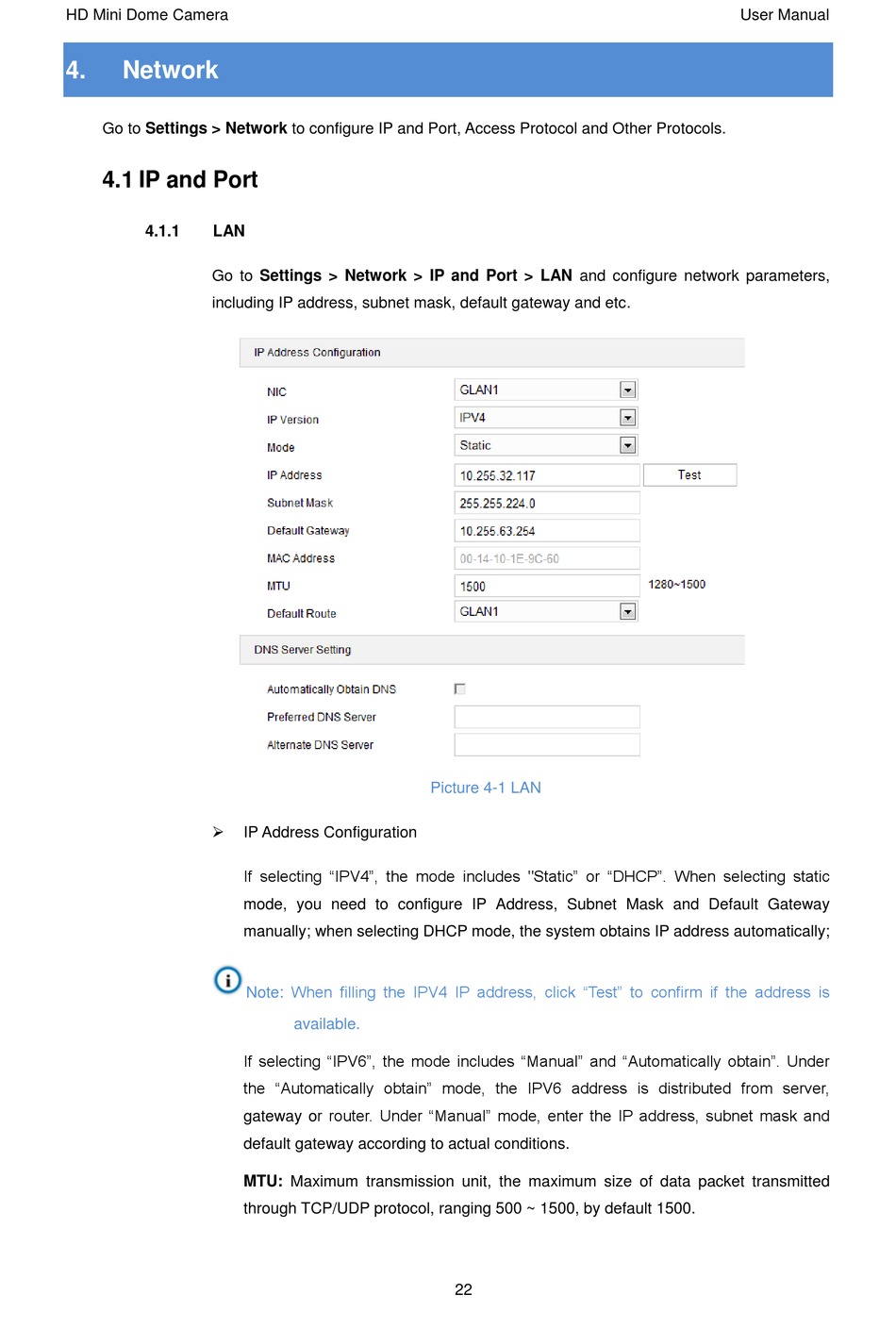

Picture 4-1 LAN
