HD Mini Dome Camera
2)
3)
4)
5)
Select "Enable";
Adjust the surveillance scene through the PTZ;
Select a number from the dropdown list of Guard Area and user can set only one
area at one time. After saving it, user can set another and max 4 guard areas can be
set;
Target Filter: to set target area. Click "Edit" and drag the mouse in the scene to
draw a rectangle. Click "Stop" after finishing and drag the slide bar of "Max and Min
Target Ratio" (1% by default). Moving objects over max or below min will not trigger
an alarm when they enter the guard area(s);

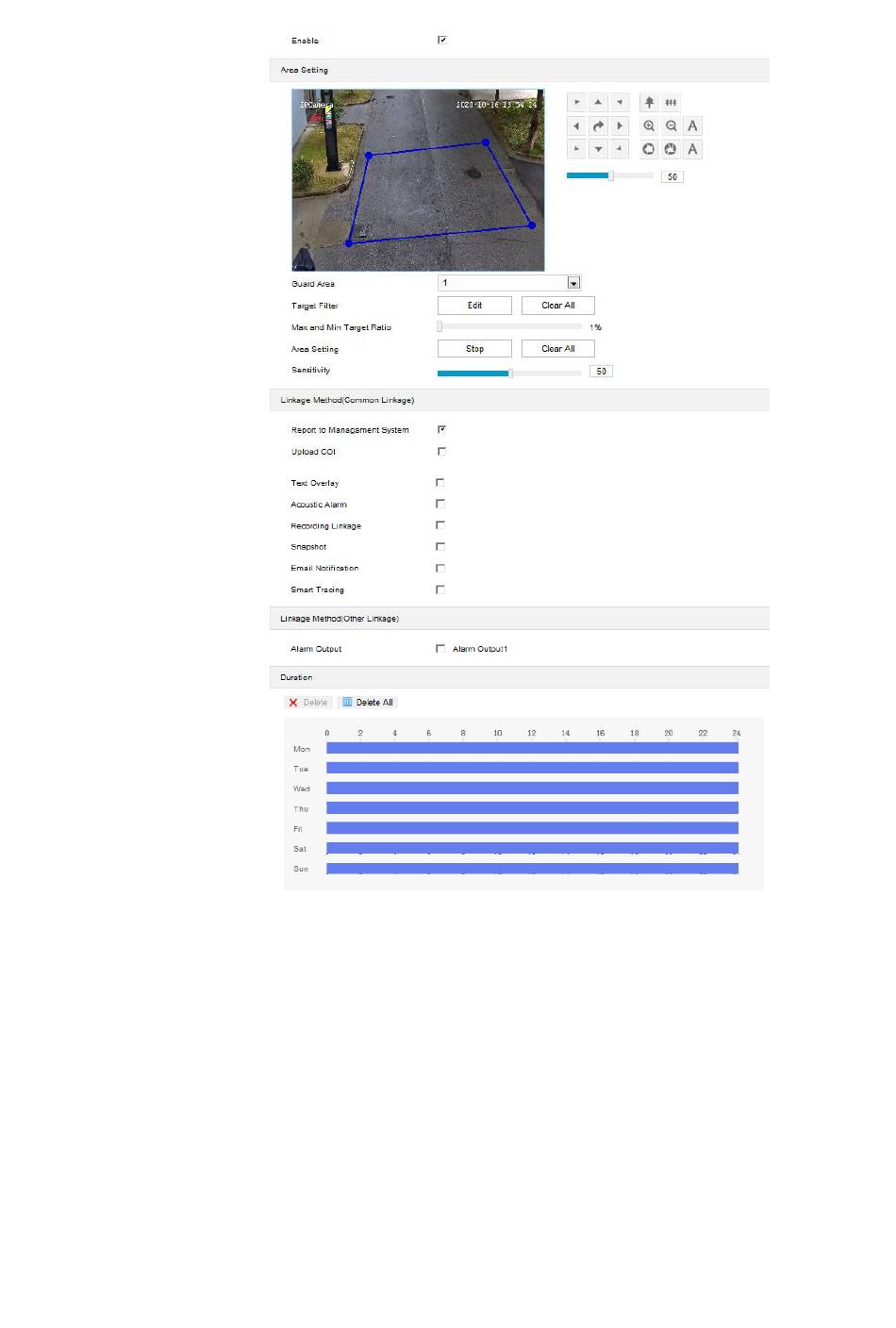

Picture 6-8 Entry guard area
67
