2.2

Sensor head with quick connector mechanism - removing the covers

NOTE
Technical Manual
In certain market areas the movable sensor head is not available, in which case all cepha-
lostat-equipped units have two fixed sensor heads.

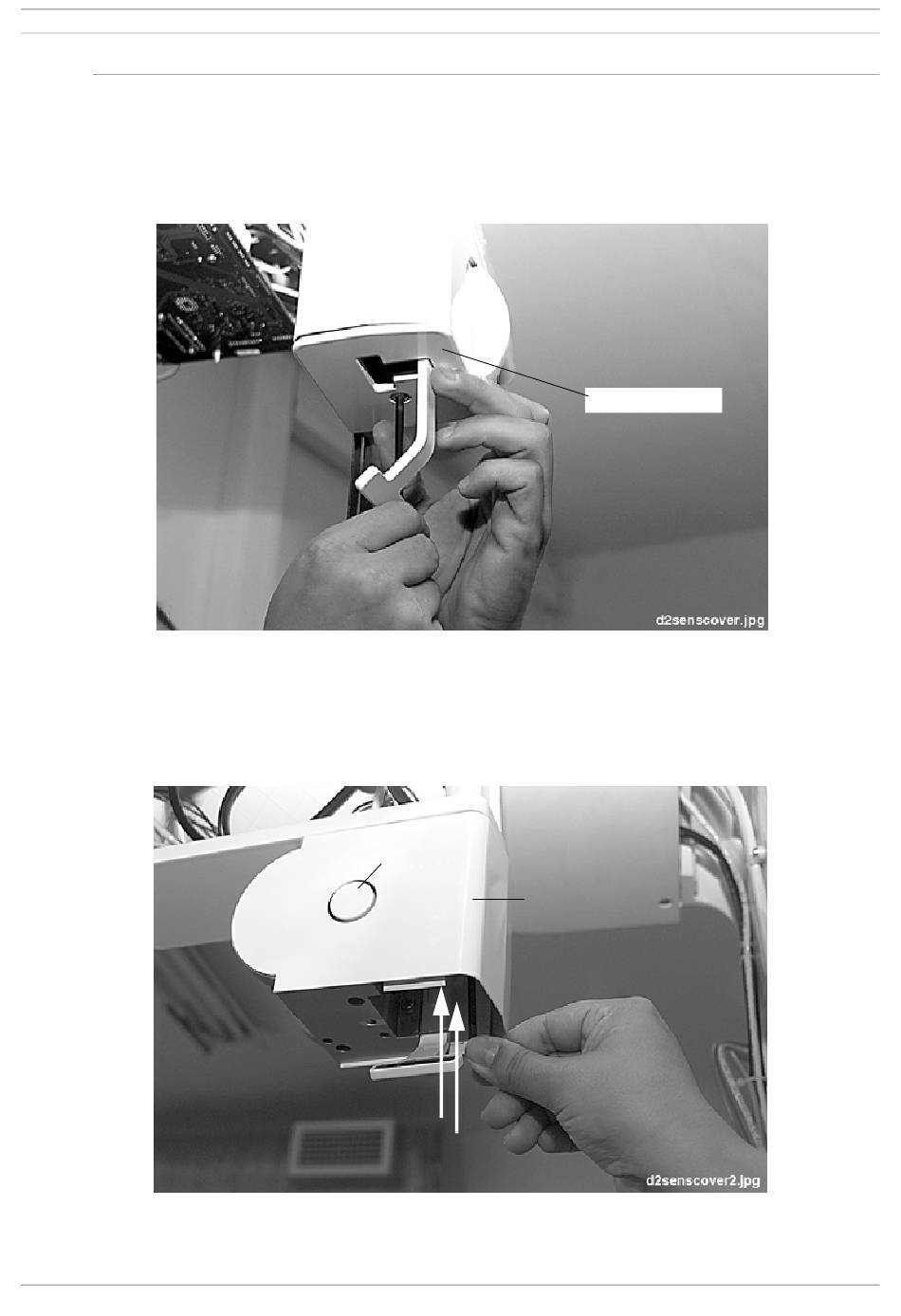

Unscrew the bottom cover plate attachment screw with the 4mm allen key and remove the cover
plate.
Figure 10
Turn the lock disc from above the locking plate and push in the quick connector mechanism lock-
ing knob. Unscrew the two attachment screws of the quick connector mechanism cover with the
4mm allen screw and slide the cover from its position.
Locking knob
Figure 11
Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Bottom cover plate
Cover
Planmeca Proline CC panoramic x-ray E-9
