Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Editing the calibration image
E-24 Planmeca Proline CC panoramic x-ray
In case the calibration image contains horizontal stripes, the image can be edited, i.e. the
selected row can be removed by marking it as "bad". You can enlarge the image with the zoom
function if needed. The image can be moved with the Hand-tool.

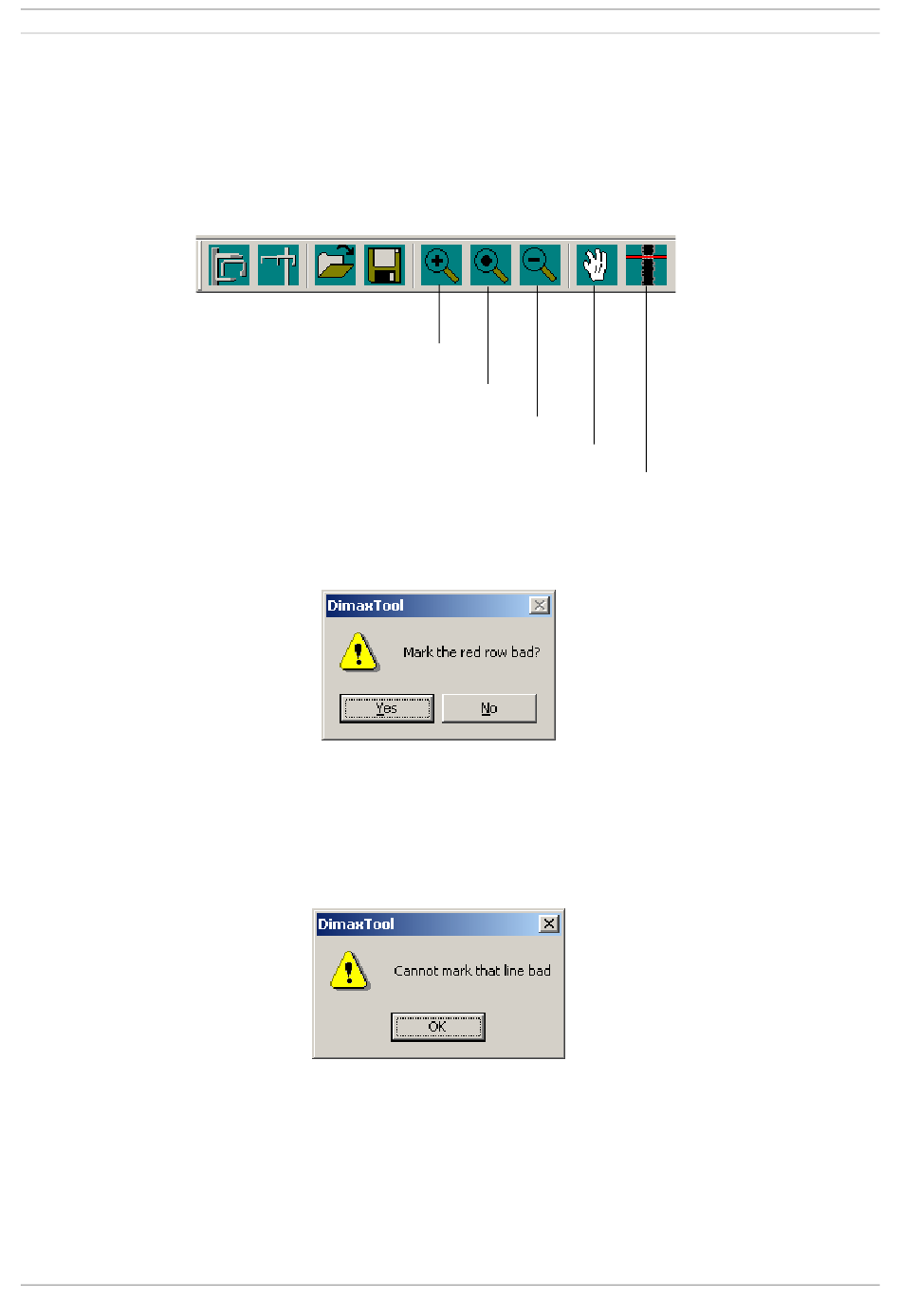

Press the Marking tool -button located on the right side of the toolbar and then click the row that
you want to mark with the left mouse button. Note, that the row number is shown on the status
bar at the bottom of the window.
Zoom in
Fit image to window
Figure 43
The message window shown below appears. Confirm the selection by clicking Yes, or cancel the
selection by clicking No. While marking the row bad the sensor is simultaneously recalibrated.
Figure 44
The panoramic sensor consists of four sensor chips, and normally the stripes are located in the
chip boundaries. You can find the chip boundaries by checking the row numbers: the row num-
bering is not consecutive. The amount of sensor chip rows that can be marked bad is limited to
six. In case you have already marked six rows, more rows cannot be marked and the following
message window appears.
Figure 45
The row can be returned back to normal by clicking it with the right mouse button.
Zoom out
Hand
Marking tool
