Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Attaching the fixed sensor head to the adapter

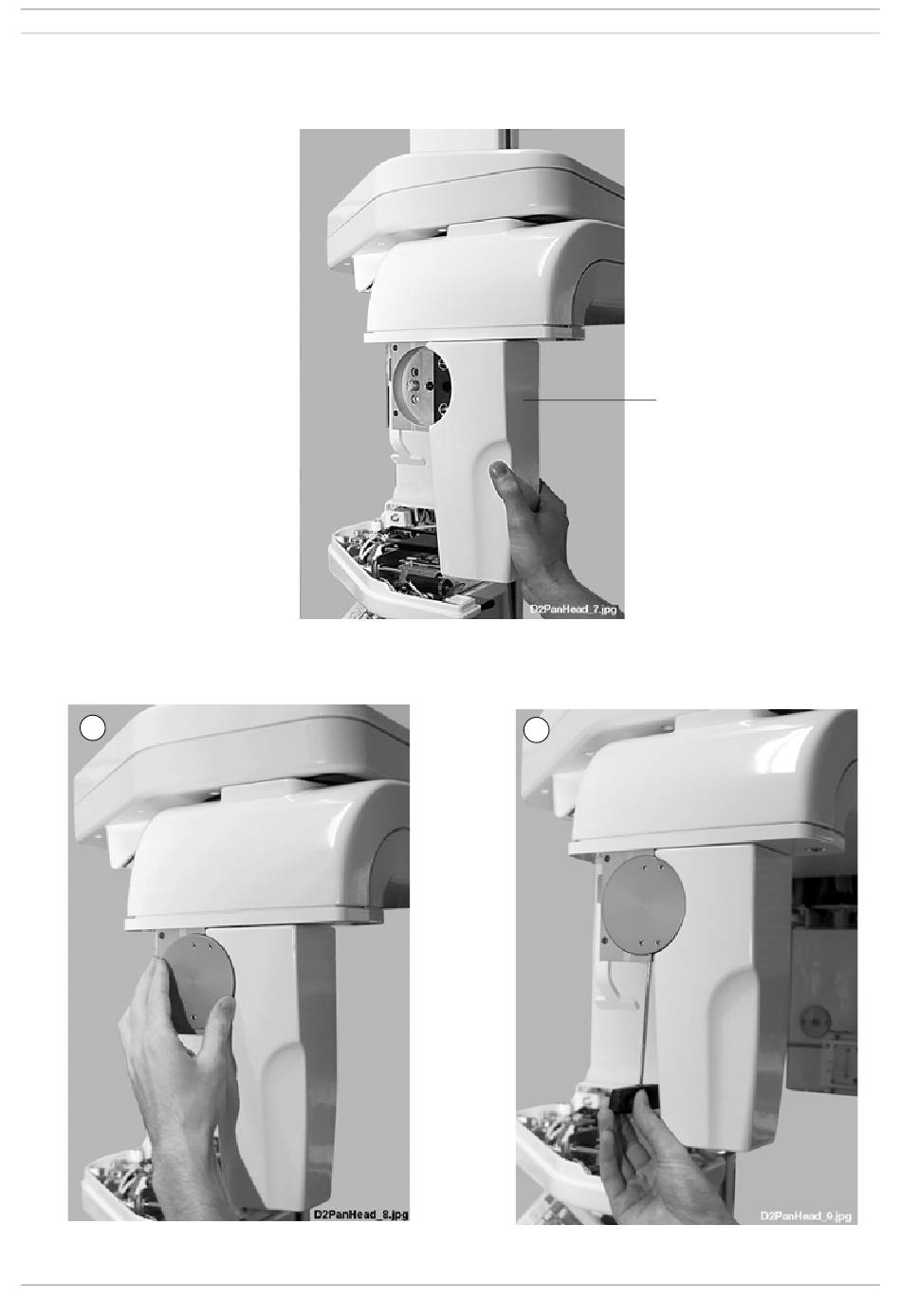

Push the sensor head to its adapter.
Sensor head
Figure 6
Place the lock disc to the adapter (Fig. 7, 1) and tighten the attachment screw (Fig. 7, 2) with the
3mm allen key.
1
2
Figure 7
