Planmeca Proline CC Technical Manual page 121

Adjustment in ball phantom's x-direction
READY
PRET
E r 0 0
NOTE
Technical Manual
If the patient positioning mechanism is too far forward or too far backwards the fore/aft position
must be adjusted and the new position programmed into the memory.
Remove the sensor head from the quick connector mechanism (see instructions given in Plan-
meca Proline CC panoramic x-rays user's manual). Attach the sensor alignment tool to the quick
connector.
Enter the test mode.
Press the ready key to drive the x-ray unit to the exposure position. When the x-ray is ready the
indicator light will come on.
Start to take a test exposure by pressing and holding down exposure button on the remote con-
trol. Stop pressing the exposure button after about two seconds so that the rotating unit stops
moving.
An error code will appear on the display. Clear the error code with the CTL-key.

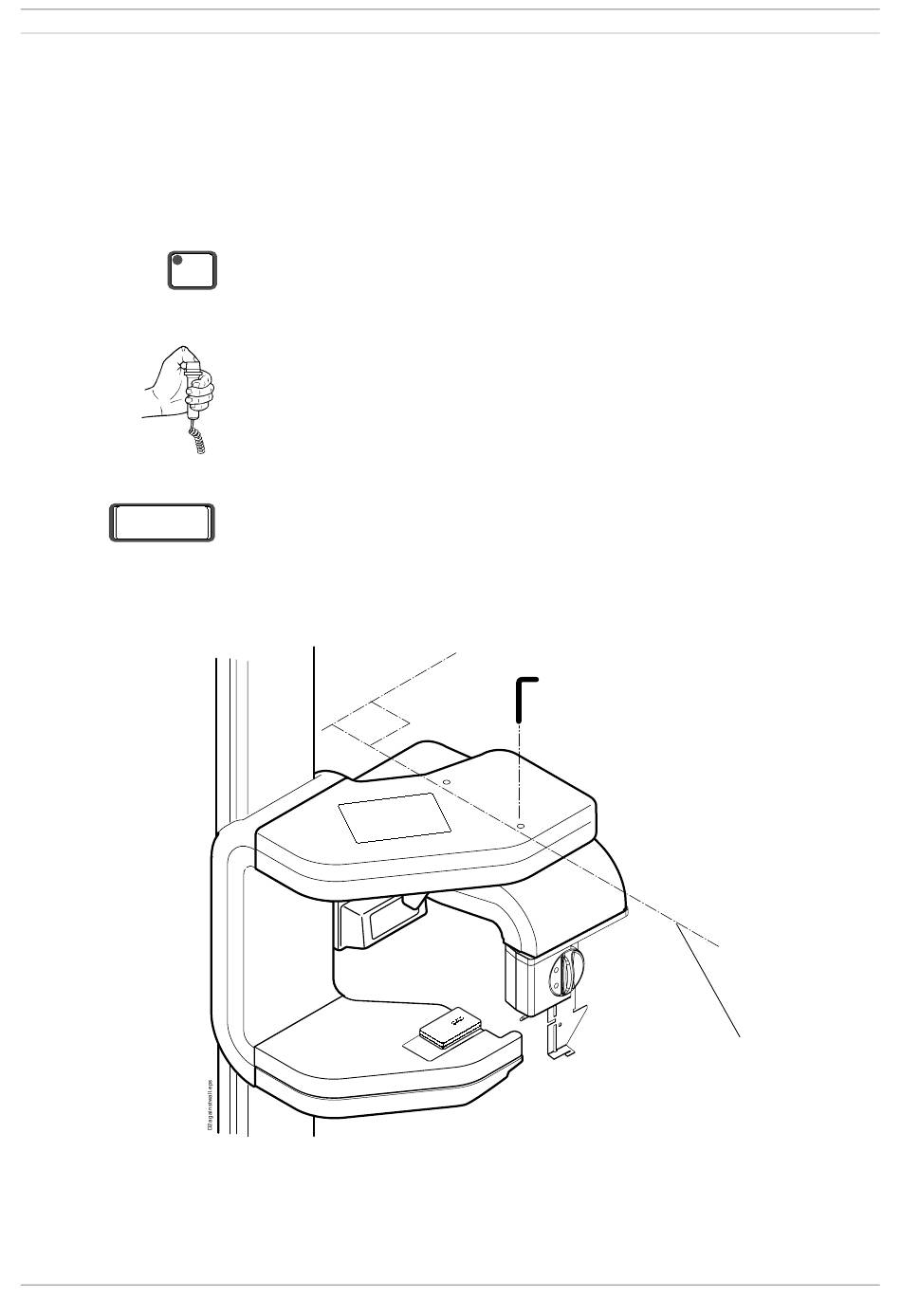

Manually position the rotating unit so that the center line that runs through the tube head and
sensor head is at right angles to the wall. Slide the alignment pin through the hole in the top of
the vertical carriage so that it goes into the positioning hole in the rotating unit. (Fig. 60)
Figure 60
Adjust the position of the rotating unit by holding the sensor head end of the rotating unit.
Never hold the tube head when adjusting the position.
Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Alignment pin
Planmeca Proline CC panoramic x-ray E-33
Center line at right
angles to the wall
