Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
6.9

Second primary slot adjustment

Second primary slot in too low or high position
Loosen these three screws.
Second primary slot not vertical
Loosen these two screws.
E-64 Planmeca Proline CC panoramic x-ray

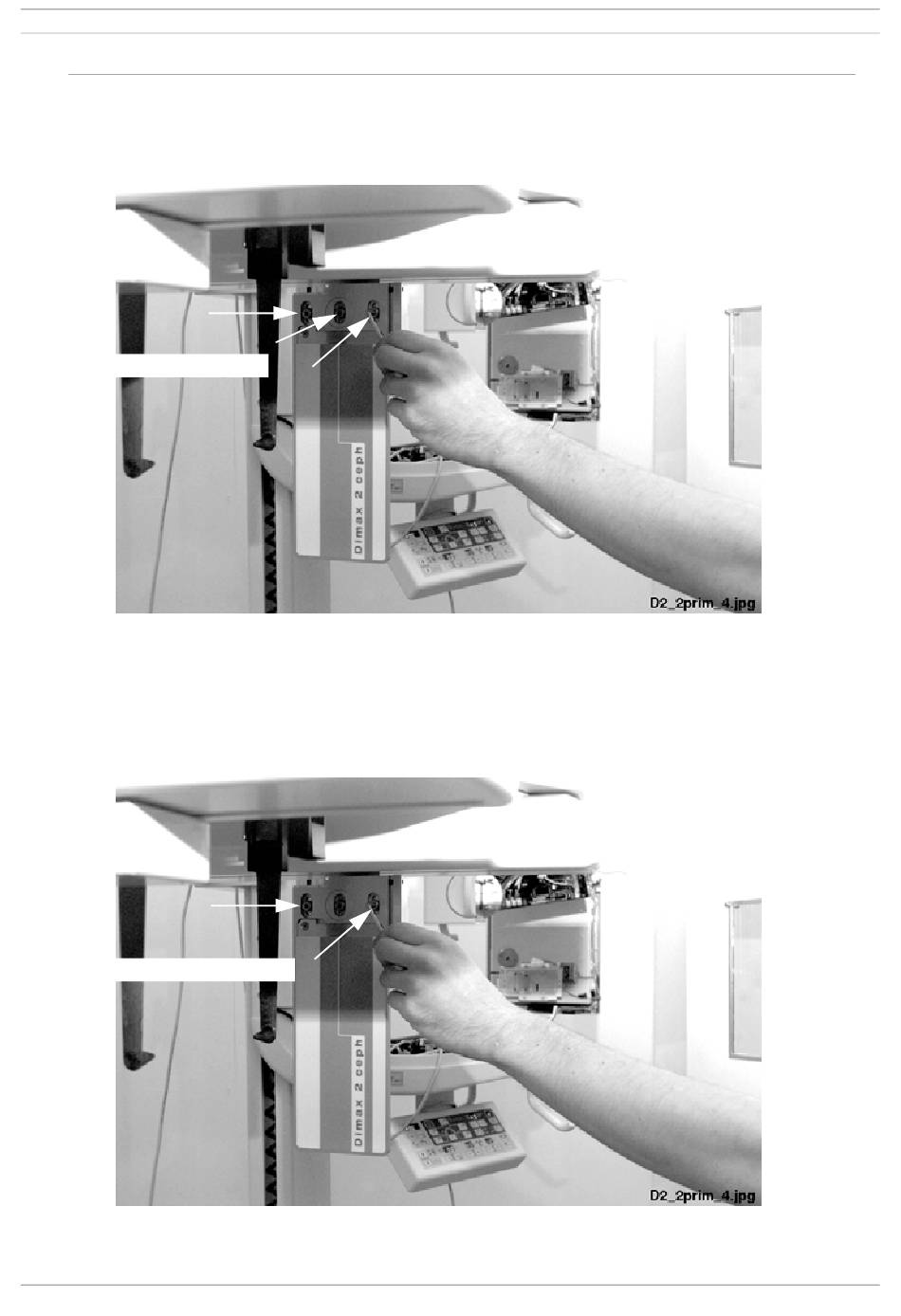

Loosen all the three screws located on the side of second primary slot with the 4mm allen key.
Figure 111
Move the second primary slot in vertical direction until the slot is correctly positioned. Tighten the
loosened screws.
Loosen the two screws located on the side of second primary slot.
Figure 112
