Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Removing and attaching the fixed sensor head
E-42 Planmeca Proline CC panoramic x-ray

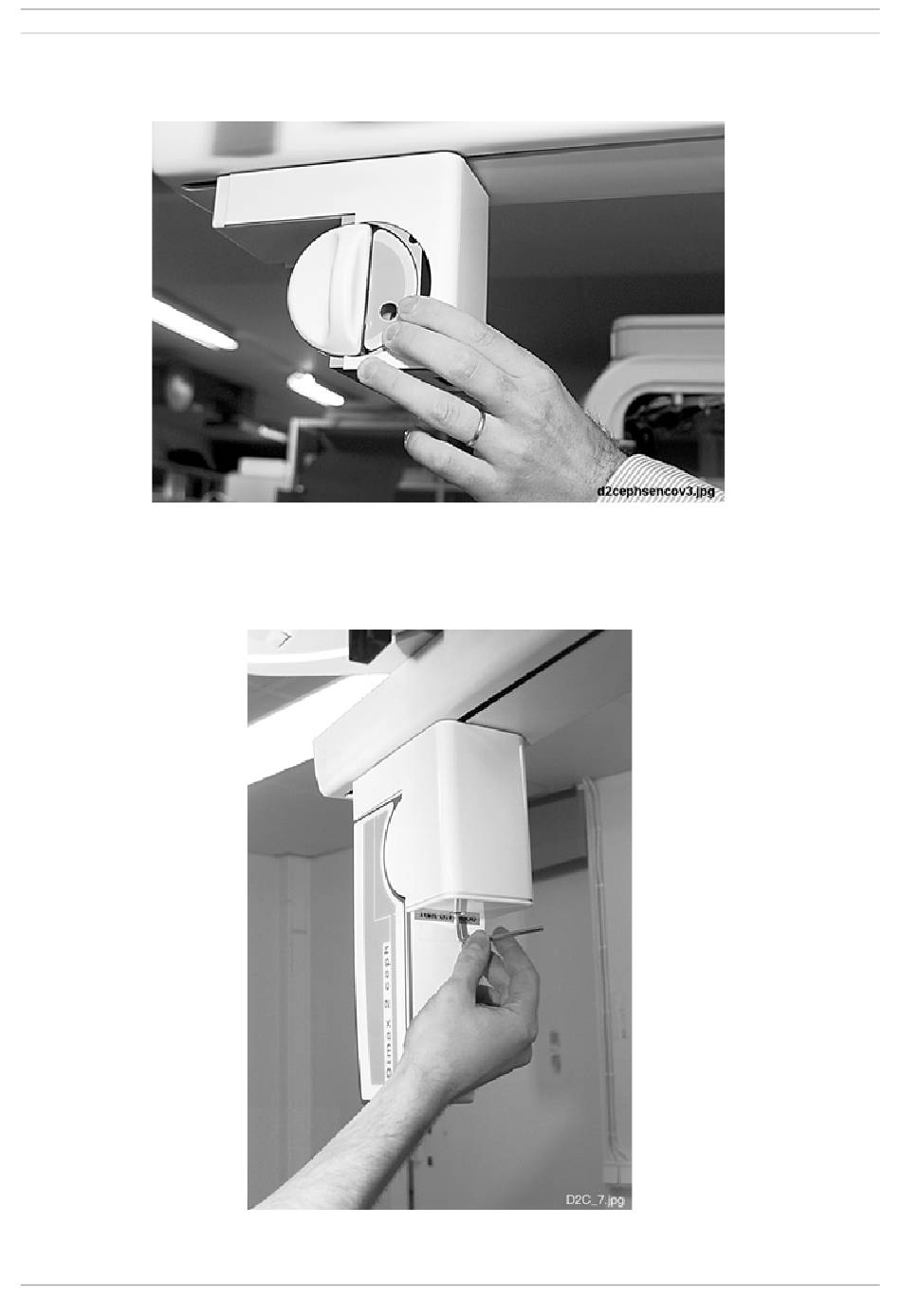

Slide the cover from its position.
Figure 72
Unscrew the bottom cover plate attachment screw with the 4mm allen key and remove the cover
plate.
Figure 73
