Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT

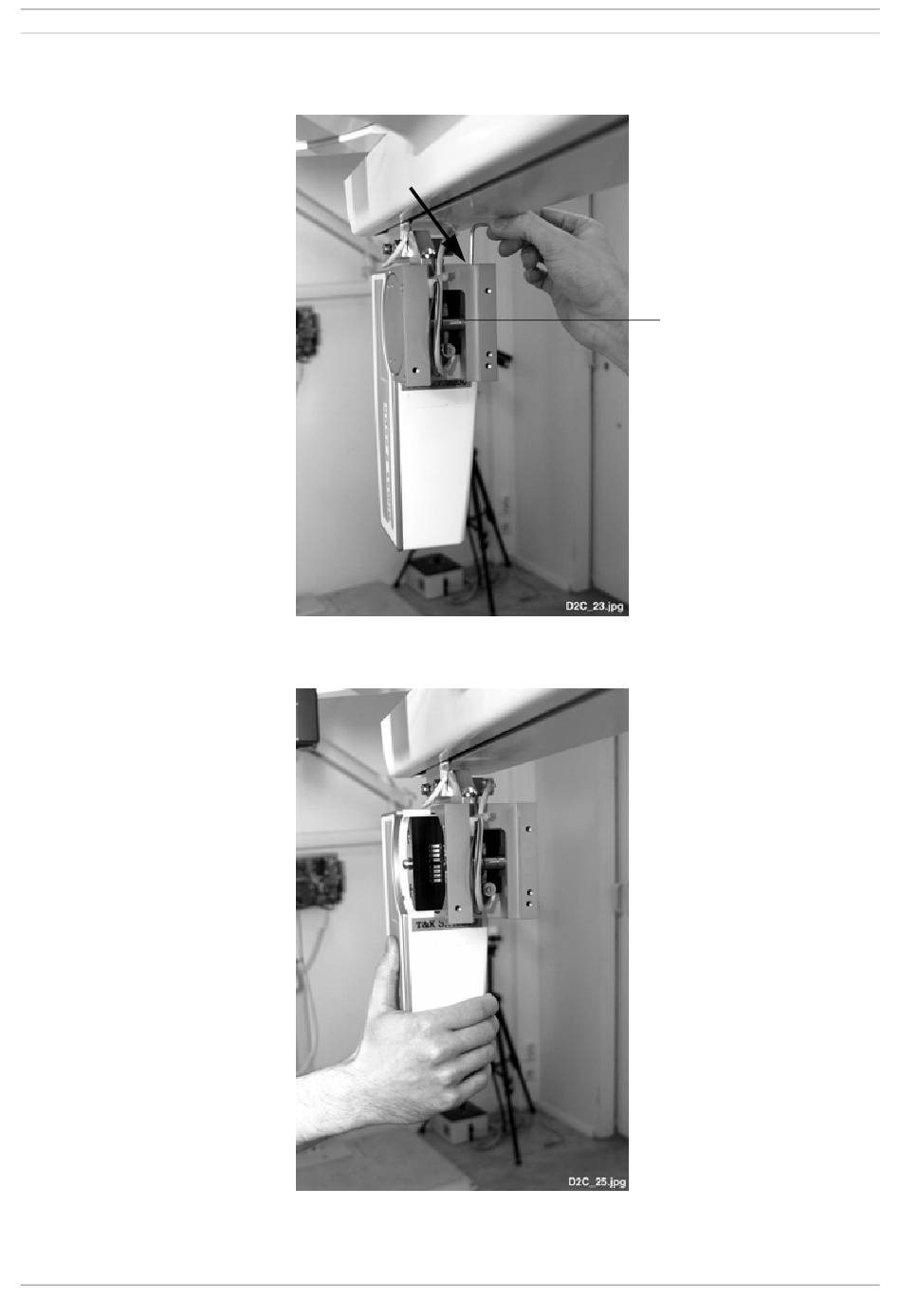

Loosen the button axle attachment screw with the 3mm allen key and push the button axle
inwards.
Button axle
Figure 78
Remove the sensor head from its adapter.
Figure 79
The sensor alignment tool can now be attached to the adapter pins.
Technical Manual
Planmeca Proline CC panoramic x-ray E-45
