Planmeca Proline CC Technical Manual page 84

Chapter
D - ADJUSTMENT & CALIBRATION
D-42 Planmeca Proline CC panoramic x-ray

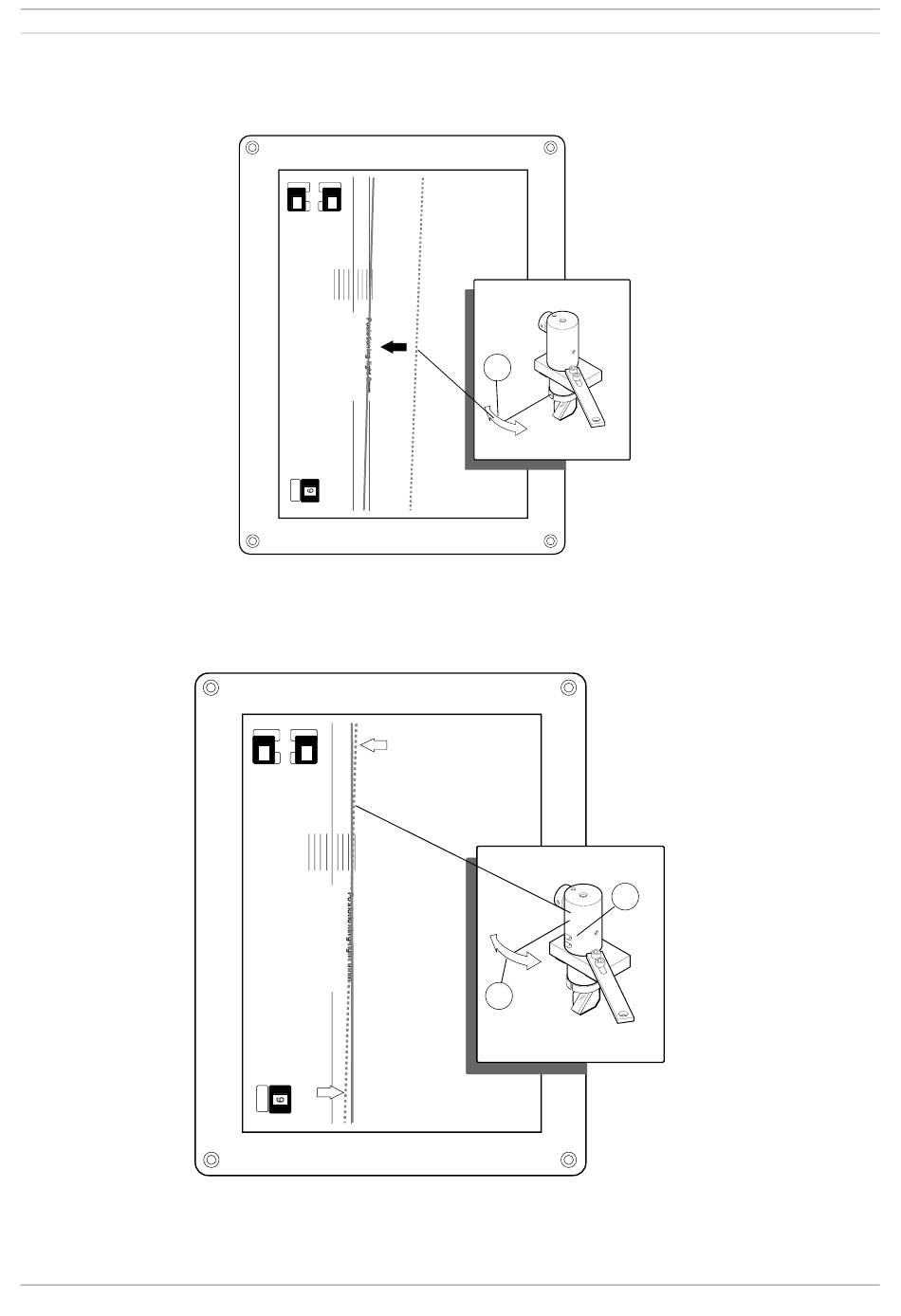

Turn the mirror bracket (Fig. 48, 1) until the light beam is in right position.
4 5
PLANMECA PM 2002 Proline CC Cephalostat 18x24
Figure 48
Turn the bulb housing (Fig. 49, 1) until the light beam is vertical. Fasten the screws of the bulb
fixing plate (Fig. 49, 2).
4 5
PLANMECA PM 2002 Proline CC Cephalostat 18x24
Figure 49
1
No.652232
2
1
No.652232
Technical Manual
