Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT

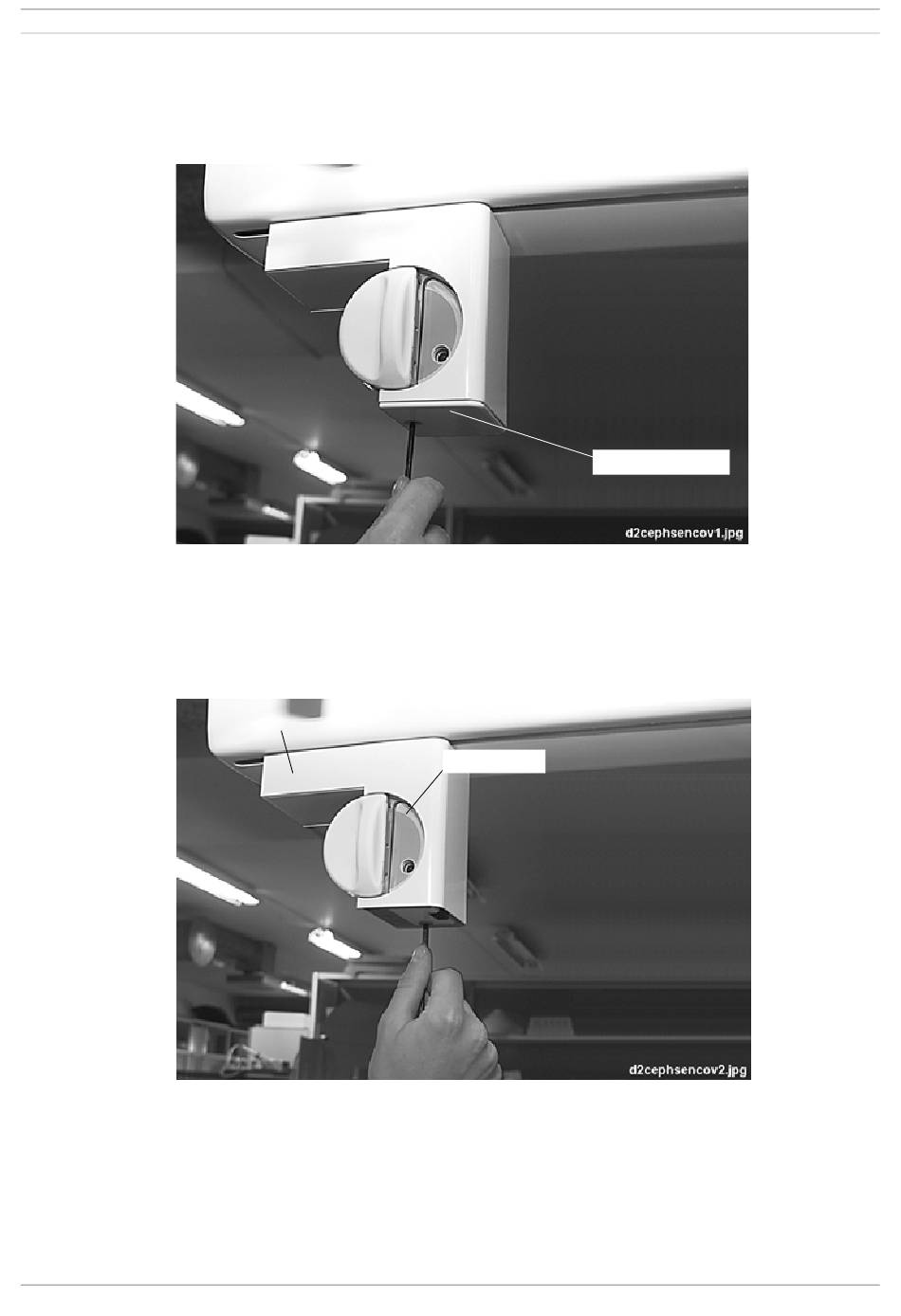

Cephalostat sensor head with quick connector mechanism - removing the covers
Unscrew the bottom cover plate attachment screw with the 4mm allen key and remove the cover
plate.
Bottom cover plate
Figure 70
Turn the lock disc from above the locking plate and push in the quick connector mechanism lock-
ing knob. Unscrew the attachment screw of the quick connector mechanism cover with the 4mm
allen key.
Cover
Locking plate
Figure 71
