Chapter
D - ADJUSTMENT & CALIBRATION
4.2

Positioning light adjustment

D-20 Planmeca Proline CC panoramic x-ray

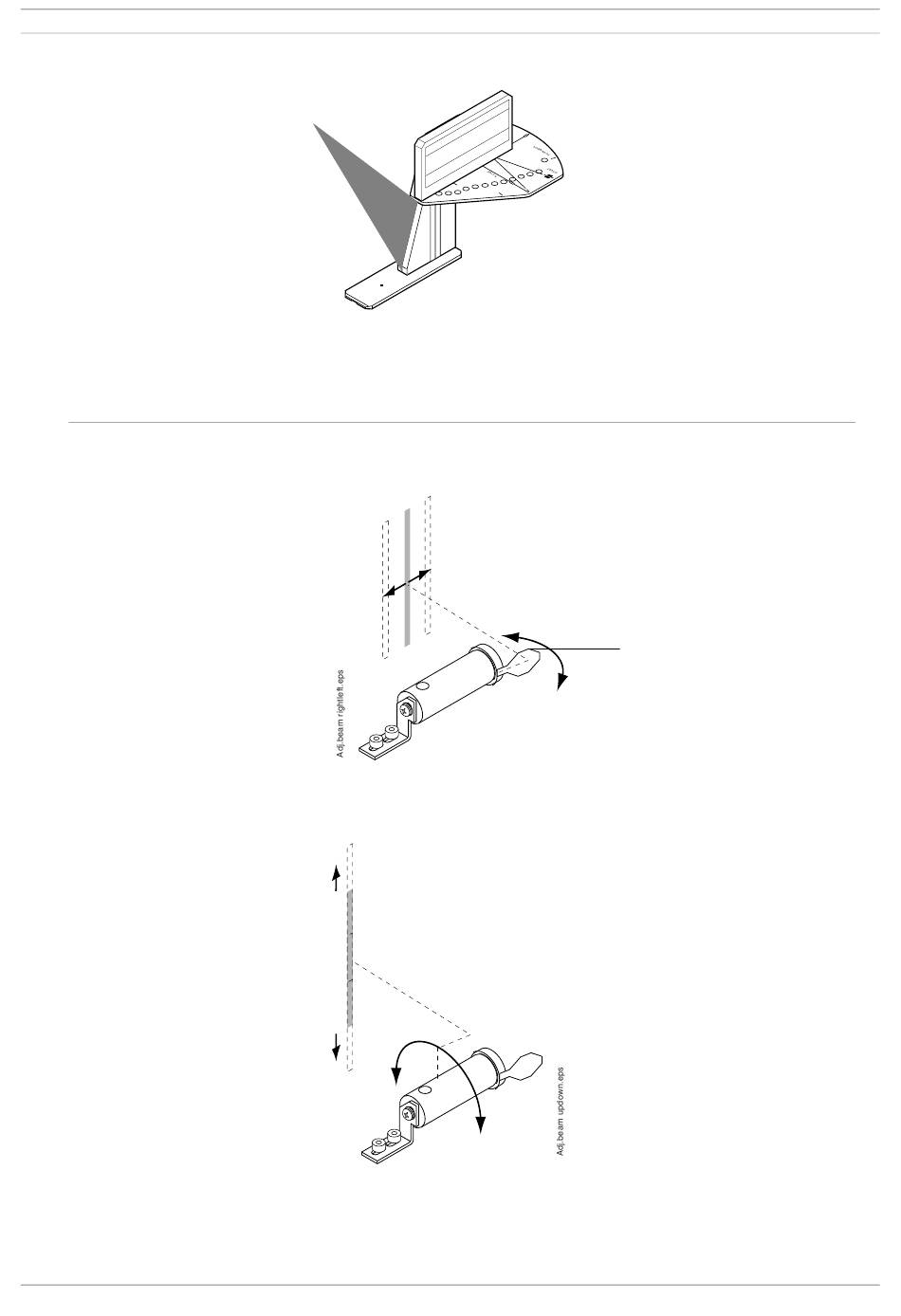

The midsagittal light beam should strike the black line on the front of the ball phantom.
Midsagittal light beam
Figure 30
If the light beams do not coincide with the black lines or they are not in focus, they should be
adjusted.
Bending the mirror bracket backwards or forwards will position the light beam.
Figure 31
Rotating the mirror bracket will adjust the light beam position in vertical direction.
Figure 32
7
9 7
.5 0
N O
O Y
C A
M E
A N
P L
Mirror bracket
