Taking a ball phantom exposure
NOTE
Technical Manual
You can now check the adjustments by taking a ball phantom exposure either as described in
section "Checking the mechanism" on page E-27 or using the Dimax2Tool program's Tests / Ball
Phantom command.
Slide the ball phantom into the patient positioning mechanism. Position the layer light beam so
that it is on the black reference line on the side of the ball phantom. Select the standard pano-
ramic exposure mode and Select a kilovolt value of 66 and a milliampere value of 2.
If the temple supports are in position, remove them before taking the ball phantom expo-
sure.

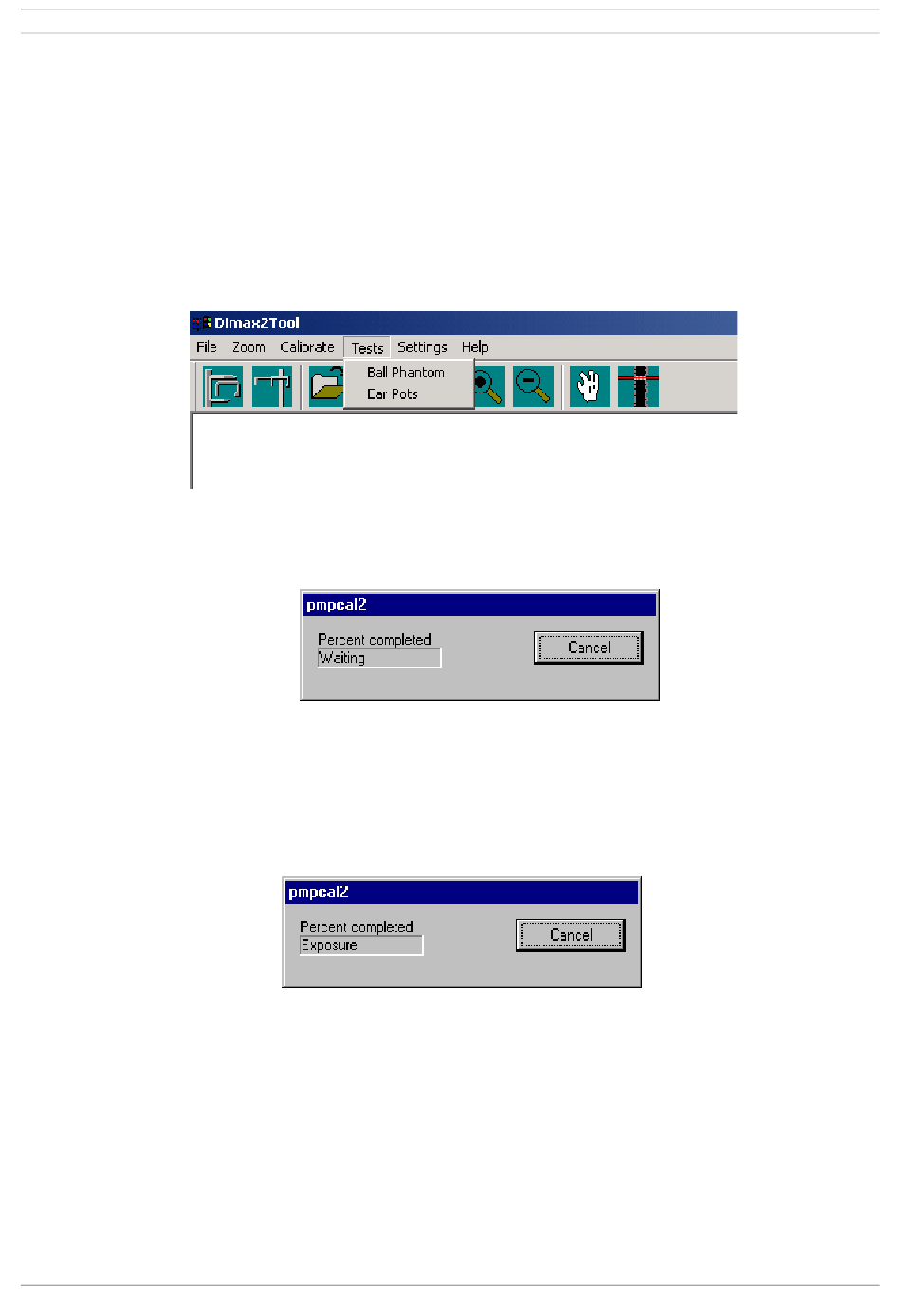

Select Ball Phantom from Tests menu.
Figure 46
The pmpcal2 window with text Waiting appears.
Figure 47
Press the ready key to drive the x-ray to the exposure position.
The text Exposure appears.
Figure 48
