Soft tissue filter adjustment

Radiation beam too far left or right
NOTE
Technical Manual
Check the radiation beam position according to instructions given in section "Checking the soft
tissue filter and the filter positioning light position" on page D-37. If the left side of the radiation
beam is too far left or right the radiation beam must be repositioned.

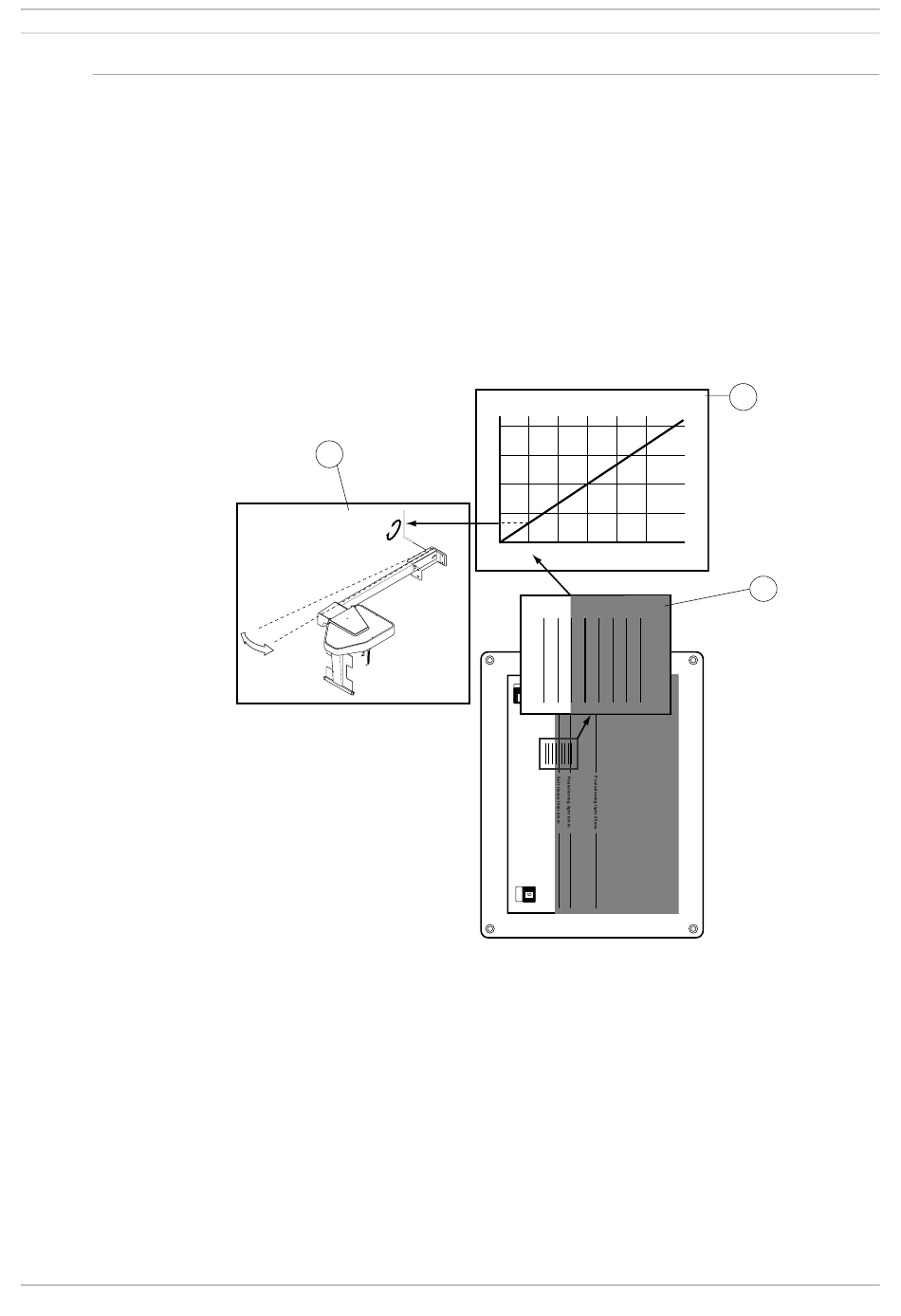

Check the place of the radiation beam from the scale on the beam alignment tool (Fig. 50, 1).
Screw the cephalostat arm adjusting screw according to the table (Fig. 50, 2, 3).
For example: if the radiation beam extends 3mm passed the "0mm line" (Fig. 50, 1), screw the
adjusting screw about 0.6 turn clockwise.
If the radiation beam does not reach the "0mm line", the screw must be screwed counterclock-
wise according to the same table.
3
Figure 50
Place the ceph head support alignment tools in the ear post holders and check the cepha-
lostat arm adjustment according to instruction given in section "Checking the head sup-
port position" on page D-34.
