6.4

Adjusting the cephalostat arm position

Latch of the rotating
unit locking solenoid
Technical Manual
The left side of the radiation beam is checked as described in section "Checking the cephalomet-
ric beam alignment" on page E-48. If the left side of the radiation beam is too far left or right the
cephalostat arm position must be adjusted.

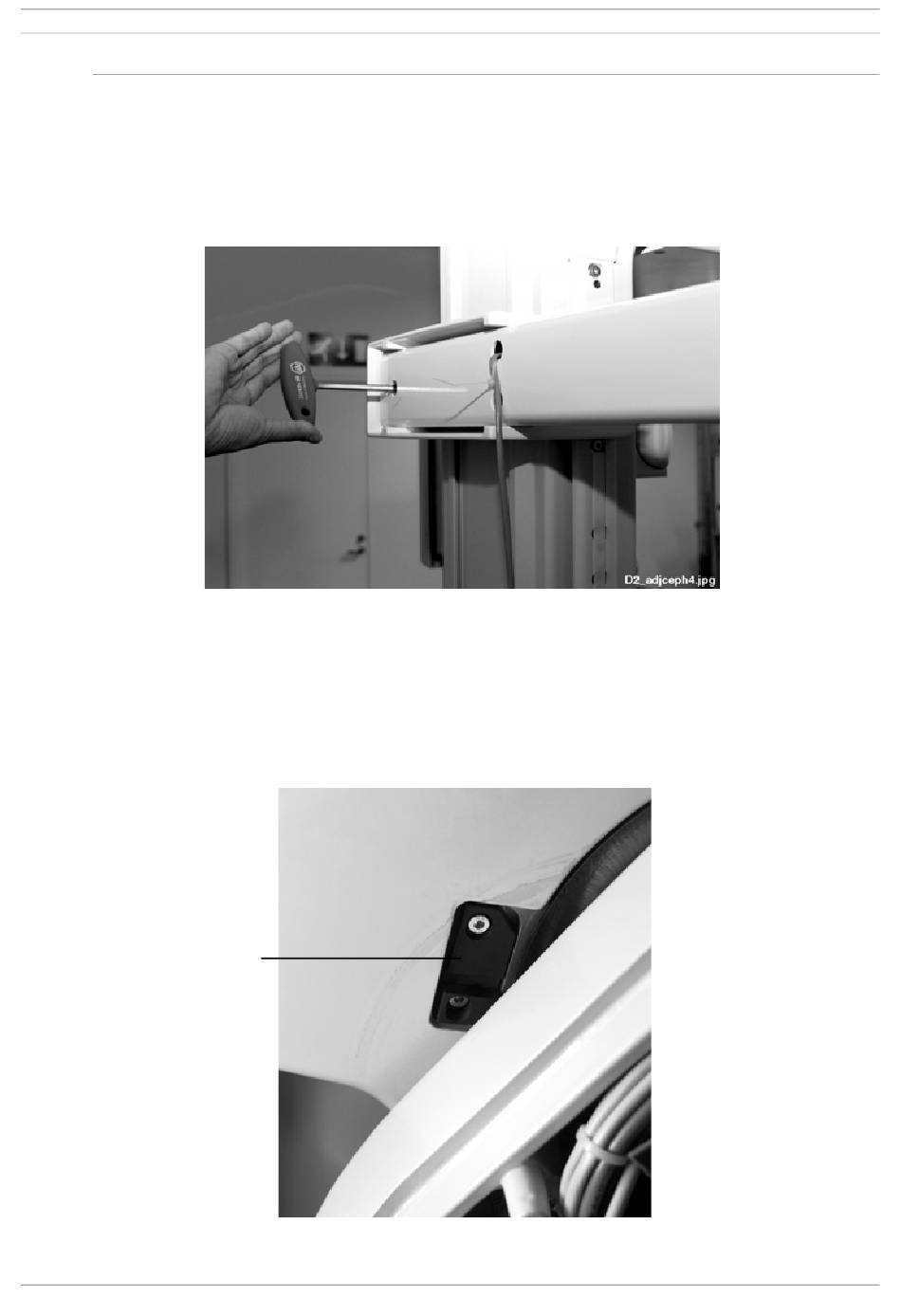

Adjust the arm position by turning the two cephalostat arm adjusting screws. Turning the other
screw clockwise with 4mm allen key will move the beam to the right, and turning the other screw
clockwise with the 6mm allen key to the left.
Figure 87
If the cephalostat arm position adjustment does not enough correct the beam alignment, the
position of the latch of the rotating unit locking solenoid must be adjusted. The adjustment is pos-
sible only when the rotating unit is in the end position.
Enter the test mode (see section "Test mode" on page B-4). Press the exposure button until the
rotating unit has reached the end position. When the rotating unit is in this position you will be
able to see a small recess in one side of the guide block which is located under the upper shelf.
Switch the unit off. Loosen the latch attachment screws with the 3mm allen key and move the
latch to required direction.
Figure 88
Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline CC panoramic x-ray E-51
