Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Removing the second primary slot
E-40 Planmeca Proline CC panoramic x-ray

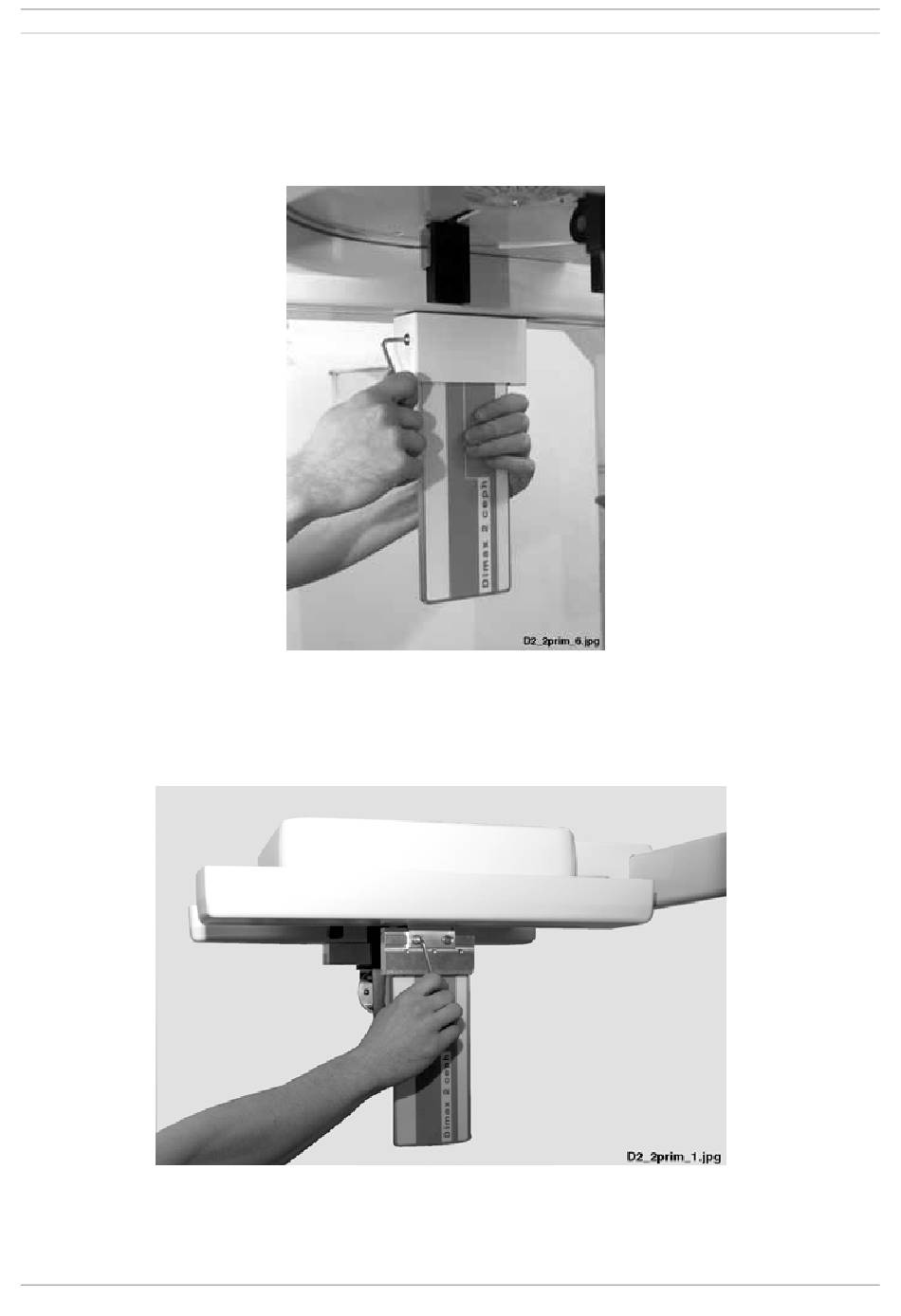

Remove the second primary slot from the cephalostat head support as follows. Unscrew the pri-
mary slot cover attachment screw with the 4mm allen key and remove the slot cover.
Figure 68
Unscrew the two slot attachment screws with the 4mm allen key and detach the slot plate.
Figure 69
