GRAPHTEC LABERLROBO DLC1000 User Manual page 78

2

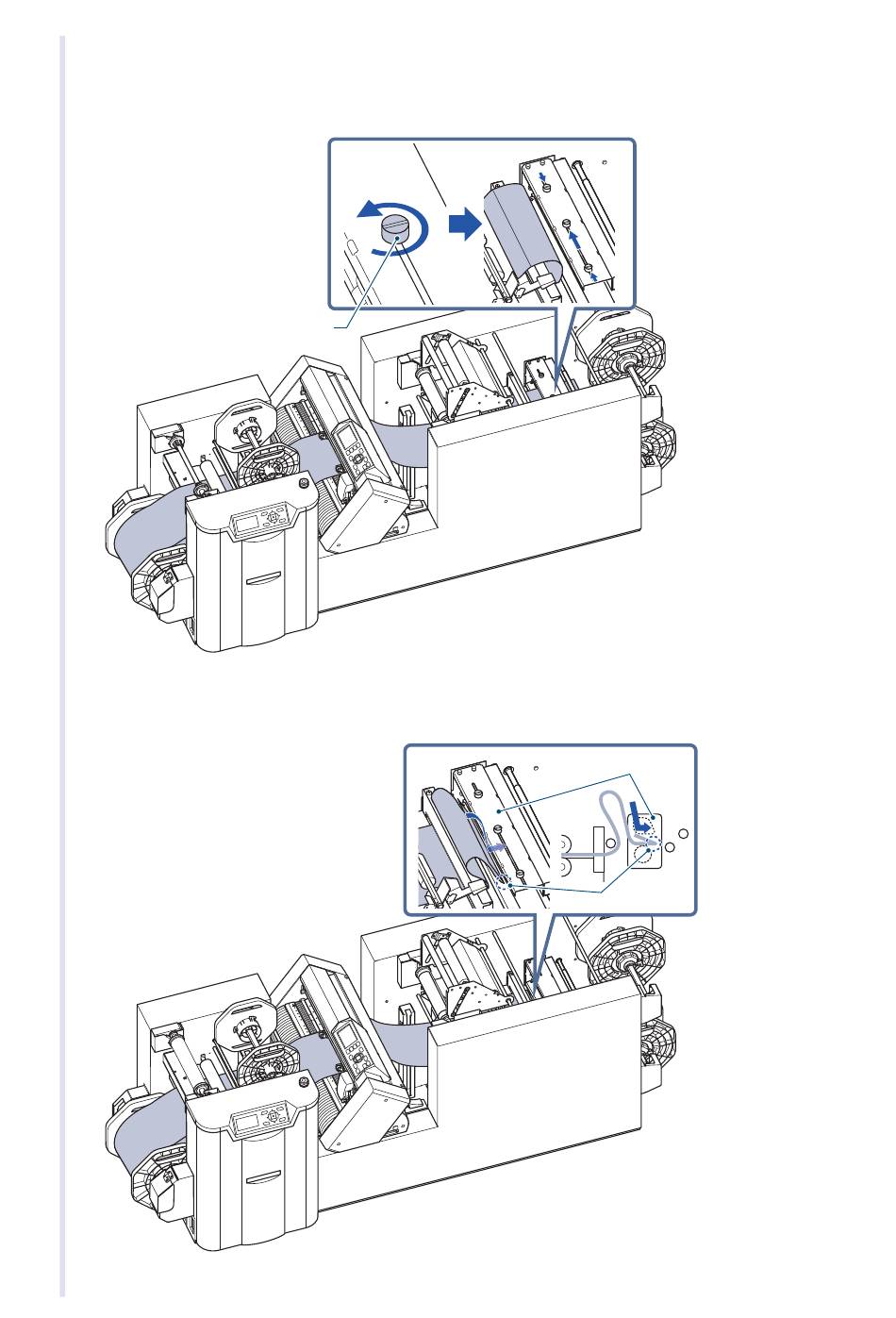

Loosen the screw and move the media to the position that you want to cut.
* Please note that if tightening the screw before passing through the media, the media may not be able to
set correctly.
3
Set the media on the inlet of the slitter in a state which the screw is loosened and the tip of media is
folded (folded on the upper side).
Tighten the screws after passing through the media as shown later.
Screw
2-52
Slitter
Media folded
