4.6

MIPI-CSI Connectors

The conga-SMC1 provides two MIPI-CSI connectors (X57 and X58). Each connector supports one camera interface. Each camera has a maximum
current of 500 mA.
4.6.1

CSI0 Interface

The CSI0 interface—the first camera interface (X57) supports up to two differential data lanes

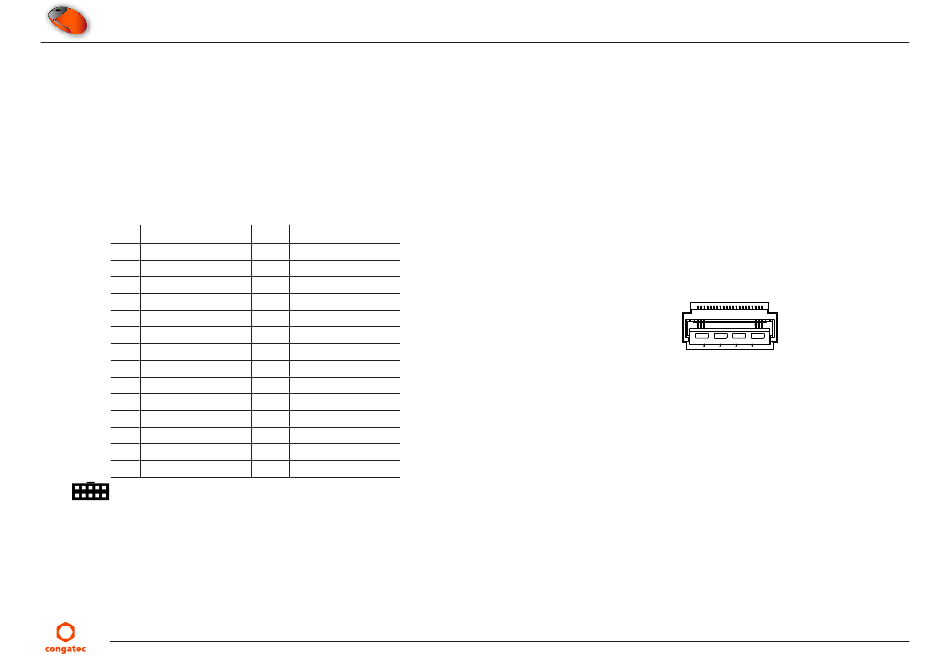

Table 16 X57 Pinout Description
Pin Signal
1 GND
2 N.C
3 N.C
4 GND
5 N.C
6 N.C
7 GND
8 CSI0_CK+
9 CSI0_CK-
10 GND
11 CSI0_RX1+
12 CSI0_RX1-
13 GND
14 CSI0_RX0+
Connector Type
X57: 0.5 mm pitch, 28-pin flat foil connector (Hirose FH41-28S-0.5SH(05))
Copyright © 2020 congatec AG
Pin Signal
15 CSI0_RX0-
16 GND
17 N.C
18 N.C
19 GND
20 I2C_CAM0_CK
21 I2C_CAM0_DAT
22 GND
23 N.C
24 N.C
25 +V5S
26 +V5S
27 +V5S
28 GND
SMC1m10
X57
31/50
