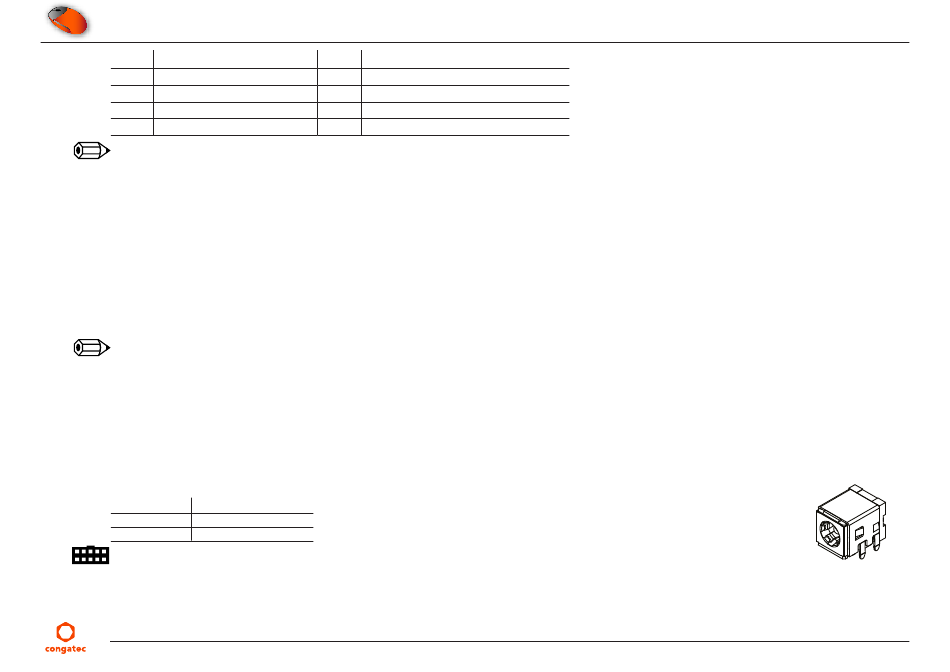

P-PIN Primary (Top) Side
P154 VDD_IN
P155 VDD_IN
P156 VDD_IN
Note
1. Not supported
2. Not connected
3. Optional connection to M.2 key E socket (assembly option)
4.1

Power Supply Connectors

The conga-SMC1 provides a DC power jack and a 4-pin Mini-Fit connector. The attached SMARC or ARM module turns on when you press the
power button M12. The power input is protected by a 15 A non-resettable fuse.
Note
We recommend a maximum input current of 8 A.
4.1.1

DC Power Jack

The conga-SMC1 provides DC power jack X33. The power input has a 15 A fuse and reverse voltage protection.
Table 6 X33 Pinout Description
Pin Function
Inner Shell +12–24 V ± 5%
Outer Shell GND
Connector Type
X33: DC power plug (7.4 x 5.1 mm)
Copyright © 2020 congatec AG
S-Pin Secondary (Bottom) Side
S155 FORCE_RECOV#
S156 BATLOW#
S157 TEST#
S158 GND
SMC1m10
X33
20/50
