13 LVDS0_0-
15 LVDS0_0+
17 GND
19 LVDS0_2-
21 LVDS0_2+
23 GND
25 LVDS0_3-
27 LVDS0_3+
29 GND
31 LVDS1_1-
33 LVDS1_1+
35 GND
37 LVDS1_CK-
39 LVDS1_CK+
Note
LVDS0 is the primary (ODD) LVDS channel and LVDS1 is the secondary (EVEN) LVDS channel.
Connector Type
X17: 40-pin, 1 mm pitch header (JST BM40B-SRDS-G-TF)
Possible Mating Connector: JST SHDR-40V-S-B
4.5.4.1

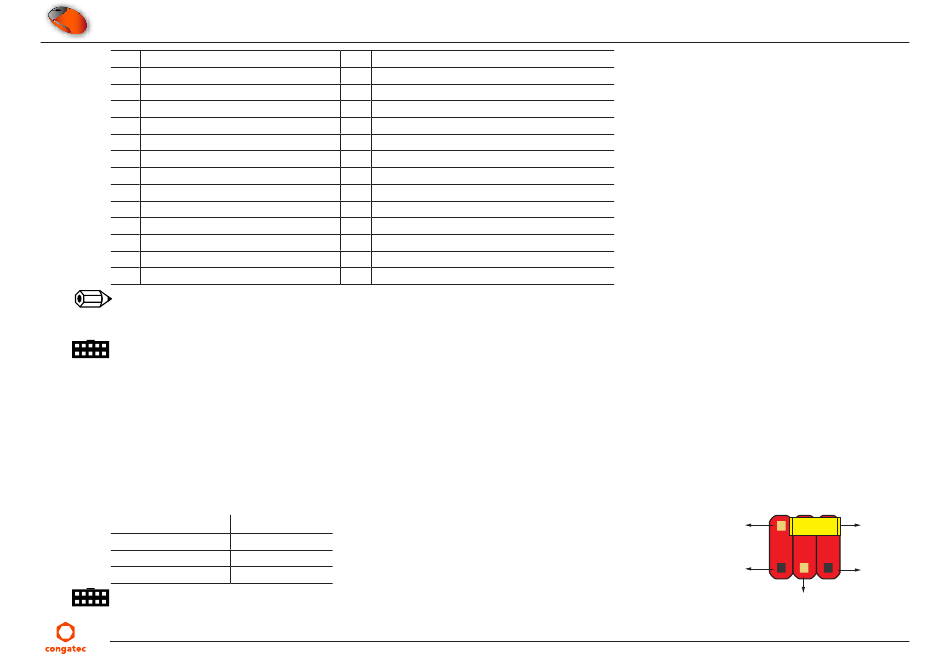

Panel Voltage Selection Jumper

The conga-SMC1 (connector X17) supports 3.3 V, 5 V and 12 V LCD panels. Use jumper JP1 to set the panel voltage.
Table 13 JP1 Pinout Description
Jumper
2-4
3-4
4-6
Connector Type
JP1: 2.54 mm grid jumper
Copyright © 2020 congatec AG
14 LVDS0_1-
16 LVDS0_1+
18 GND
20 LVDS0_CK-
22 LVDS0_CK+
24 GND
26 LVDS1_0-
28 LVDS1_0+
30 GND
32 LVDS1_2-
34 LVDS1_2+
36 GND
38 LVDS1_3-
40 LVDS1_3+
Panel Voltage
5 V
12 V
3.3 V (default)
SMC1m10
JP1
Pin 2
Pin 6
No Pin
No Pin
Pin 3
