4.7

USB Connectors

The conga-SMC1 provides the following USB connectors:
• Micro USB Type-AB (ARM-based variant only)
• Stacked Dual USB 2.0 Type-A
• Stacked Dual USB 3.0 Type-A

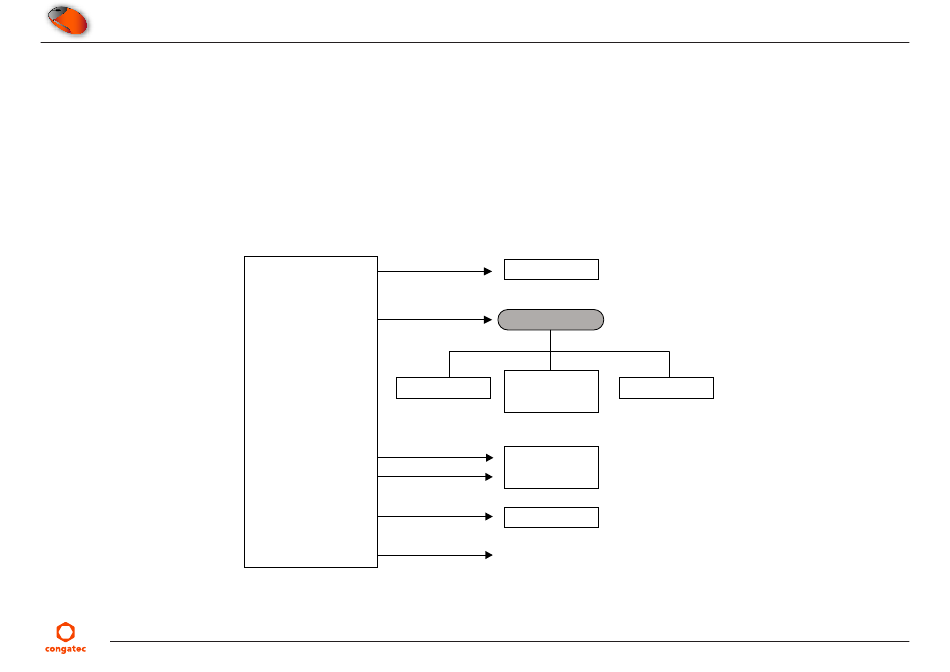

The USB signals are also routed to M.2 and mPCIe interfaces as shown below:
Copyright © 2020 congatec AG
ARM-Based Variants (PN: 020750)
USB0 (2.0)
USB1 (2.0)
X12 - M.2 Type E
SMARC 2.0 Connector
USB2 (3.0)
USB3 (3.0)
USB4 (2.0)
USB5 (2.0)
X2 - Micro USB AB
USB Hub
X3 - Dual Stacked
X6 - miniPCIe
USB Type A
X4 - Dual Stacked
USB Type A
X10 - M.2 Type B
Not Used
