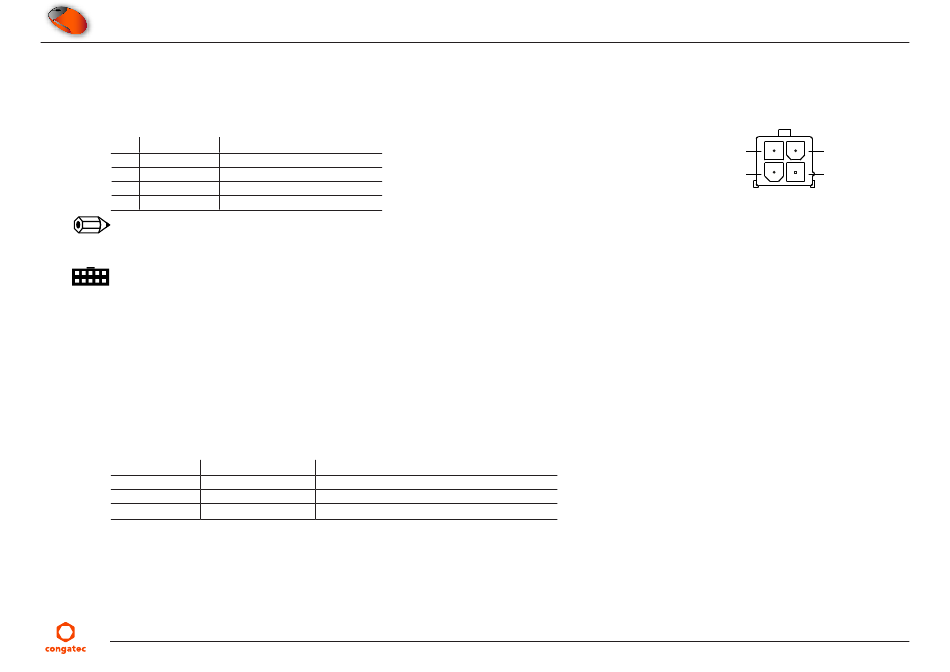

4.1.2

Mini-Fit 4-Pin Connector

The conga-SMC1 provides an internal 4-pin Mini-Fit connector X34.
Table 7 X44 Pinout Description
Pin Signal
1 GND
2 GND
3 +12 V–24 V
4 +12 V–24 V
Note
The conga-SMC1 offers an optional right-angle, 2-pin Weidmuller OMNIMATE SL 5.08HC/02/90 connector (BOM option).
Connector Type
X34: 2 x 2-pin, 4.2 mm pitch Mini-Fit connector (Molex 87427-0442)
Possible Mating Connector: Molex 39012040
4.1.3

Power Status LEDs

The bi-color LED D90 shows the power state of the conga-SMC1 as described in the table below. Optionally, you can connect an LED to pins
9 and 10 of connector X32 for power state indication (see section 4.20 "Front Panel Header").
Table 8 D90 LED Status
LED Status ACPI State
Green - Steady on S0
Red - Steady on Pseudo G3
Green - Blinking
S3-S5
Copyright © 2020 congatec AG
Description
Ground
Ground
Power supply +12–24 V ± 5%
Power supply +12–24 V ± 5%
Description
System on and running
Deep sleep with minimum power consumption
Standby or Suspend to RAM/Disk
SMC1m10
X34
3
4
1
2
