Connector Layout

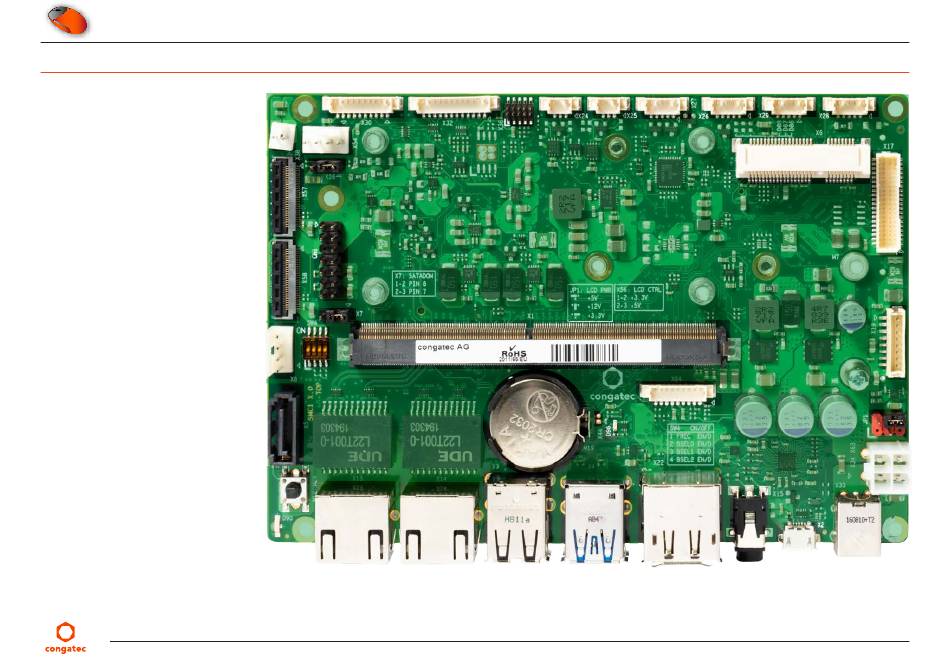

The connector layout
picture below shows each
connector and its name
designator. Jumpers and
their respective pins are
also shown. Select the
Adobe 'Zoom-In-Tool'
and zoom in on a given
component to see its
designator. Hover over
the component and
the 'Zoom-In-Tool' will
change indicating there
is a link.
Click on the link to
navigate to the area in
the document where the
component is described.
Use the mouse icon in the
top left hand corner of
the destination page to
return to the connector
layout picture.
