USB Connectors

The conga-HPC/EVAL-Server provides the following USB connectors:
• two USB 3.1 Type-A
– port 0 on connector X62
– port 1 on connector X64
• one dual-stacked USB 3.1 Type-A (ports 2 and 3 on connector X16)
• two USB 2.0 headers
– ports 4 and 5 on header X76
– ports 6 and 7 on header X19
4.5.1

USB 3.1 Type-A

The conga-HPC/EVAL-Server provides two USB 3.1 Type-A connectors X62 (USB port 0) and X64 (USB port 1). Each USB port supports a
maximum current of 1 A.
Connector X62 shares its USB 2.0 port differential pairs with the BMC via a multiplexer. Use jumper X17 to route the module's USB 2.0 port 0
differential pairs
Table 24 X17 - USB 2.0 Port 0 Routing
Pin Signal
1-2 Route differential pairs to BMC
2-3 Route differential pairs to X62 (default)
Connector Type
X62, X64: USB Type-A plug
X17: 2.54, 2-pin jumper
Copyright © 2022 congatec AG

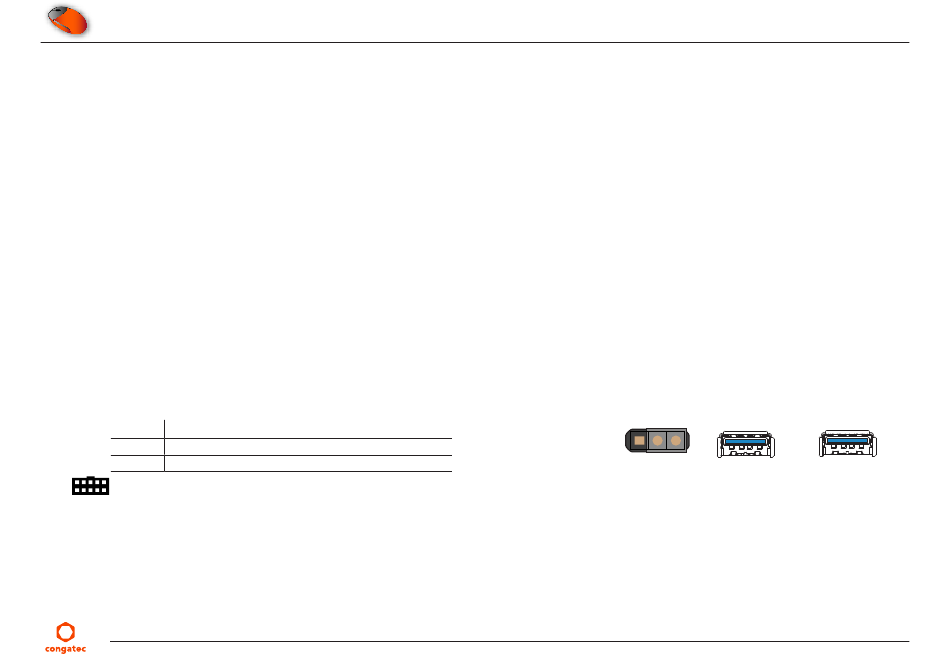

X17
