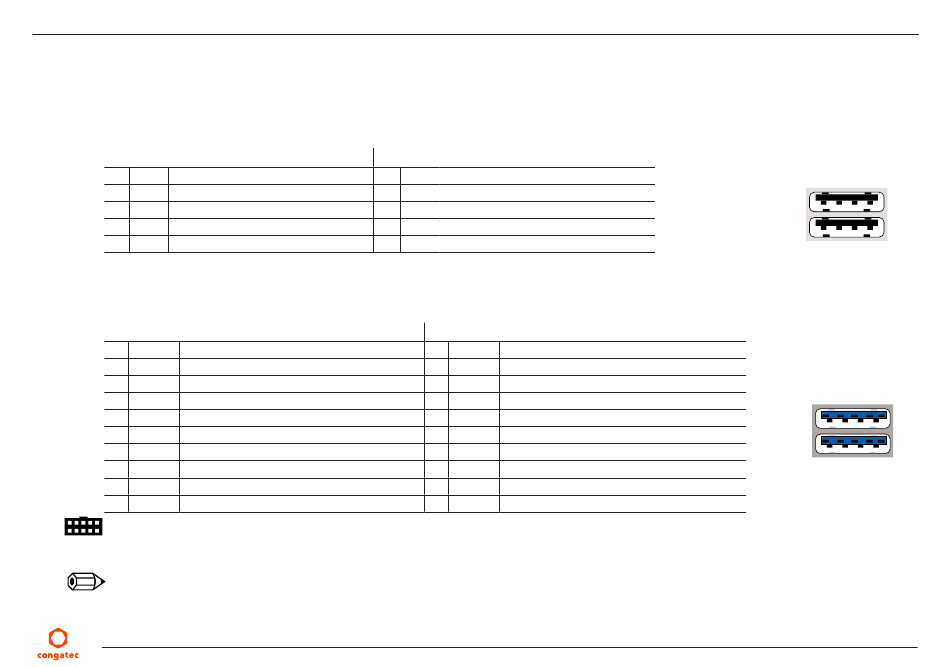

Rear USB Connectors

The conga-IA4 offers four USB ports on the rear side - two USB 2.0 ports on connector X14 and two USB 3.0 ports on connector X15. The
pinouts are described below:
Table 25 USB 2.0 (Connector X14) Pinout Descriptions
Lower Port
Pin Signal Description
A1 +5V +5V supply
A2 Data- Hi-speed differential transceiver (negative) B2
A3 Data+ Hi-speed differential transceiver (positive)
A4 GND Ground
Table 26 USB 3.0 (Connectors X15) Pinout Descriptions
Lower Port
Pin Signal Description
1 +5V +5V supply
2 Data0- Hi-speed differential transceiver (negative)
3 Data0+ Hi-speed differential transceiver (positive)
4 GND Ground
5 SS0_RX- SuperSpeed receiver differential pair (negative)
6 SS0_RX+ SuperSpeed receiver differential pair (positive)
7 GND Ground
8 SS0_TX- SuperSpeed transmitter differential pair negative)
9 SS0_TX+ SuperSpeed transmitter differential pair (positive)
Connector Type
X14,X15: Two type A, dual port USB connectors
Note
Connectors X14 and X15 have maximum current of 0.5A and 1.2A respectively.
Copyright © 2016 congatec AG
Upper Port
Pin Signal Description
B1 +5V +5V supply
Data- Hi-speed differential transceiver (negative)
B3 Data+ Hi-speed differential transceiver (positive)
B4 GND Ground
Upper Port
Pin Signal Description
10 +5V +5V supply
11 Data1- Hi-speed differential transceiver (negative)
12 Data1+ Hi-speed differential transceiver (positive)
13 GND Ground
14 SS1_RX- SuperSpeed receiver differential pair (negative)
15 SS1_RX+ SuperSpeed receiver differential pair (positive)
16 GND Ground
17 SS1_TX- SuperSpeed transmitter differential pair (negative)
18 SS1_TX+ SuperSpeed transmitter differential pair (positive)
IA40m12.indd
Connector X14
Upper
1 2 3 4
Lower
1 2 3 4
Connector X15
Upper
18 17 16 15 14
10 11 12 13
Lower 9 8 7 6 5
1 2 3 4
