5.3
USB Connectors
The conga-PA5 provides two USB 3.0 ports, one USB Type-C™ port, and one USB 2.0 header for two additional USB 2.0 ports. USB 2.0 signals
are also routed to the mSATA/mPCIe socket (X10).
5.3.1
USB 3.0 Ports

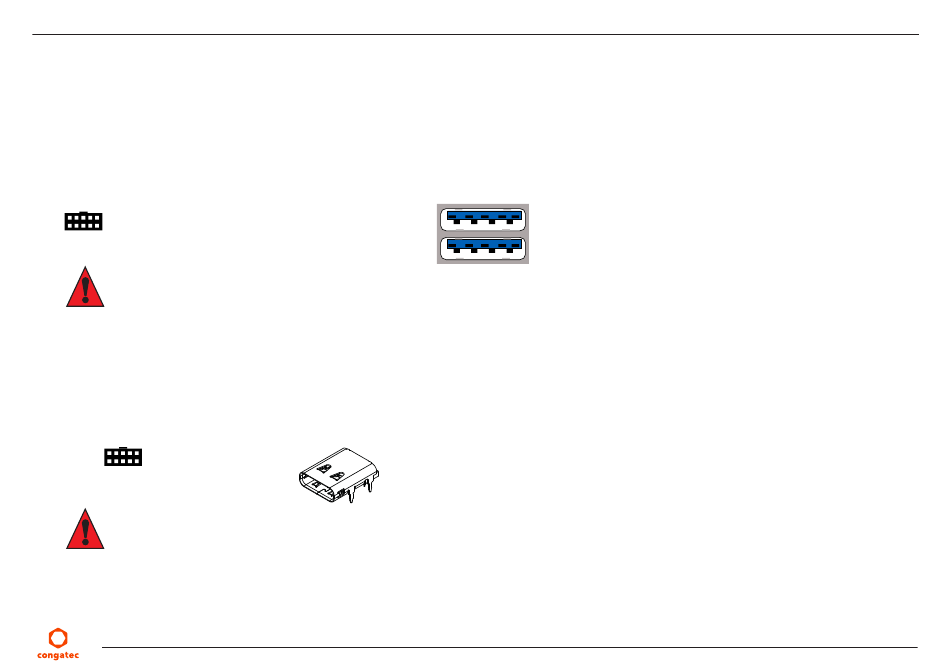

The conga-PA5 provides two USB 3.0 ports (X7).
Connector Type
X7: Dual-stacked USB 3.0 Type-A ports
Caution
The maximum cable length of a USB 2.0 device connected to any port shall not exceed 3 meters in order to comply to EN 55024:2010.
5.3.2
USB Type-C™ Port
The conga-PA5 provides one USB Type-C™ port (X9). It supports Power Delivery (up to 5V @ 3A) and DisplayPort Alternate Mode.
Connector Type
X9: USB Type-C™ port
Caution
The maximum cable length of a USB 2.0 device connected to any port shall not exceed 3 meters in order to comply to EN 55024:2010.
Copyright © 2017 congatec GmbH
X7
Upper
9
8
7
6
1
2
3
4
9
8
7
6
Lower
1
2
3
4
X9
5
5
PA50m112
29/48
