Monitoring Data Port Activity

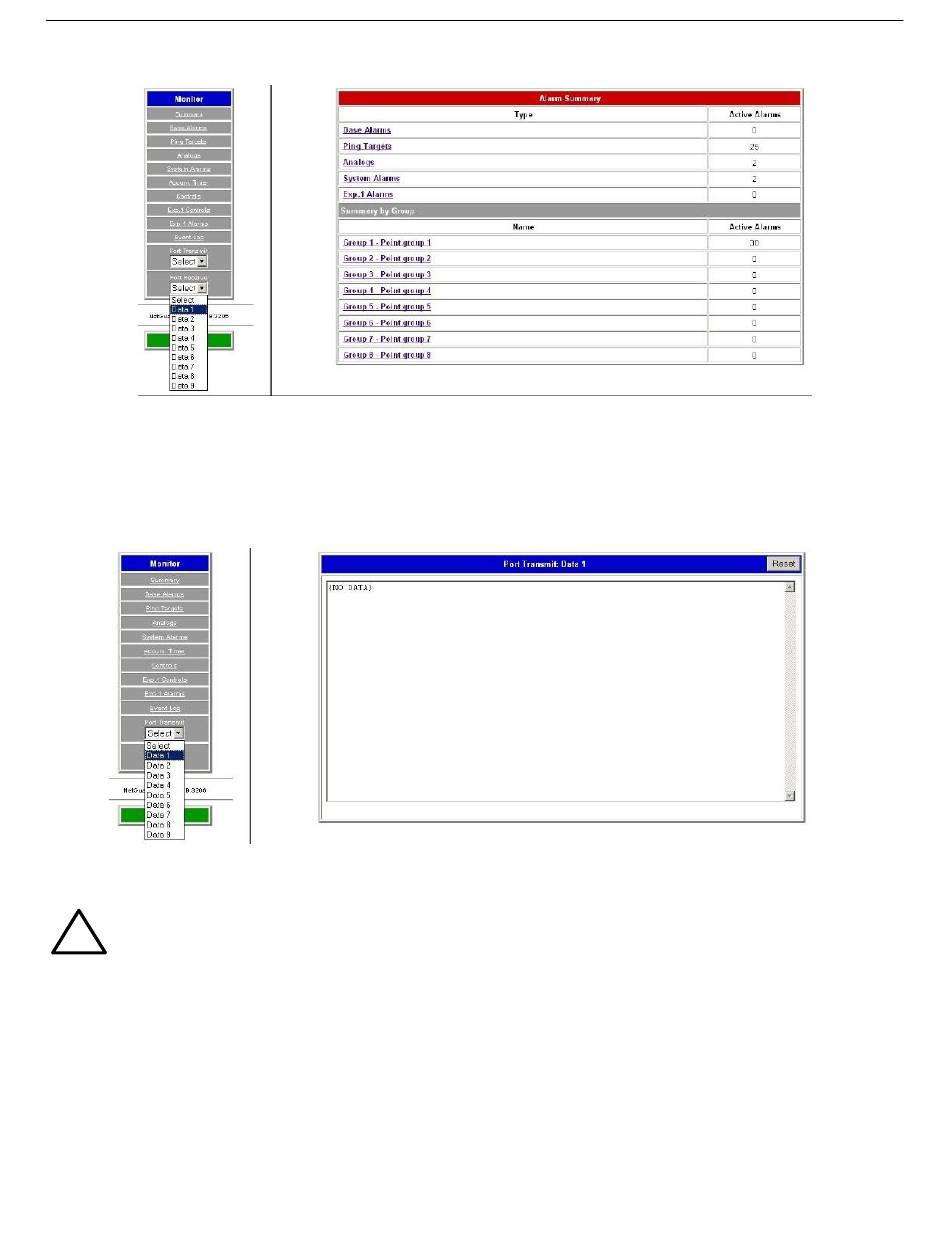

Fig. 3.9. To view the data being received by the connected equipment, select the data port number from
the Monitor menu > Port Receive drop-down menu
The Port Transmit and Port Receive screens provide live status information for the eight data ports by
displaying transmit or receive activity in ASCII for the selected port. See Appendix C, "ASCII
Conversion" for specific ASCII symbol conversion.
Fig. 3.9.1 To view the data being transmitted to the connected equipment, select the data port number
from the Monitor menu > Port Transmit drop-down menu
!
Hot Tip!
Use the NetGuardian's CHAN feature to analyze bi-directional communication between two device in
real time, see section "Data Port Types."
