2.5.4

Changing Craft Port Communication Settings

Use the following steps to change the craft port communication settings:
1. From the Edit menu > Ports screen, scroll down to the Craft section, see figure below.
2. You can set the baud rate for the craft port to 300, 600, 1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200. (Default Baud is 9600)
3. Under the Wfmt (word format) field, select the appropriate data bits, parity, and stop bits setting to
match your terminal emulation software or device connected to the NetGuardian craft port. (Default
designation is 8,N,1)
4. Click Submit Data to save the craft port settings.

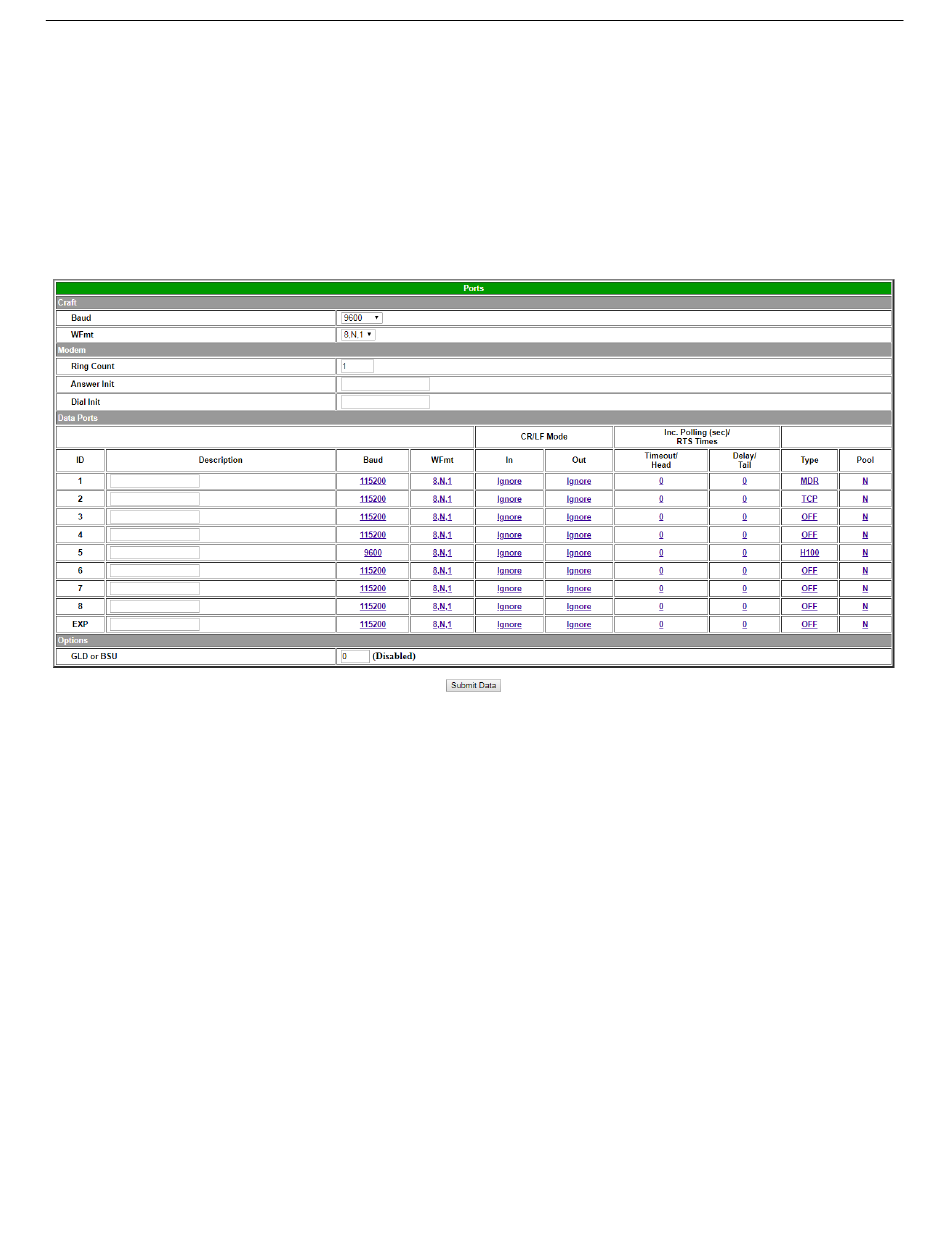

Fig. 2.9. Configure the front panel craft port parameters from the Ports screen
