3.7

Monitoring System Alarms

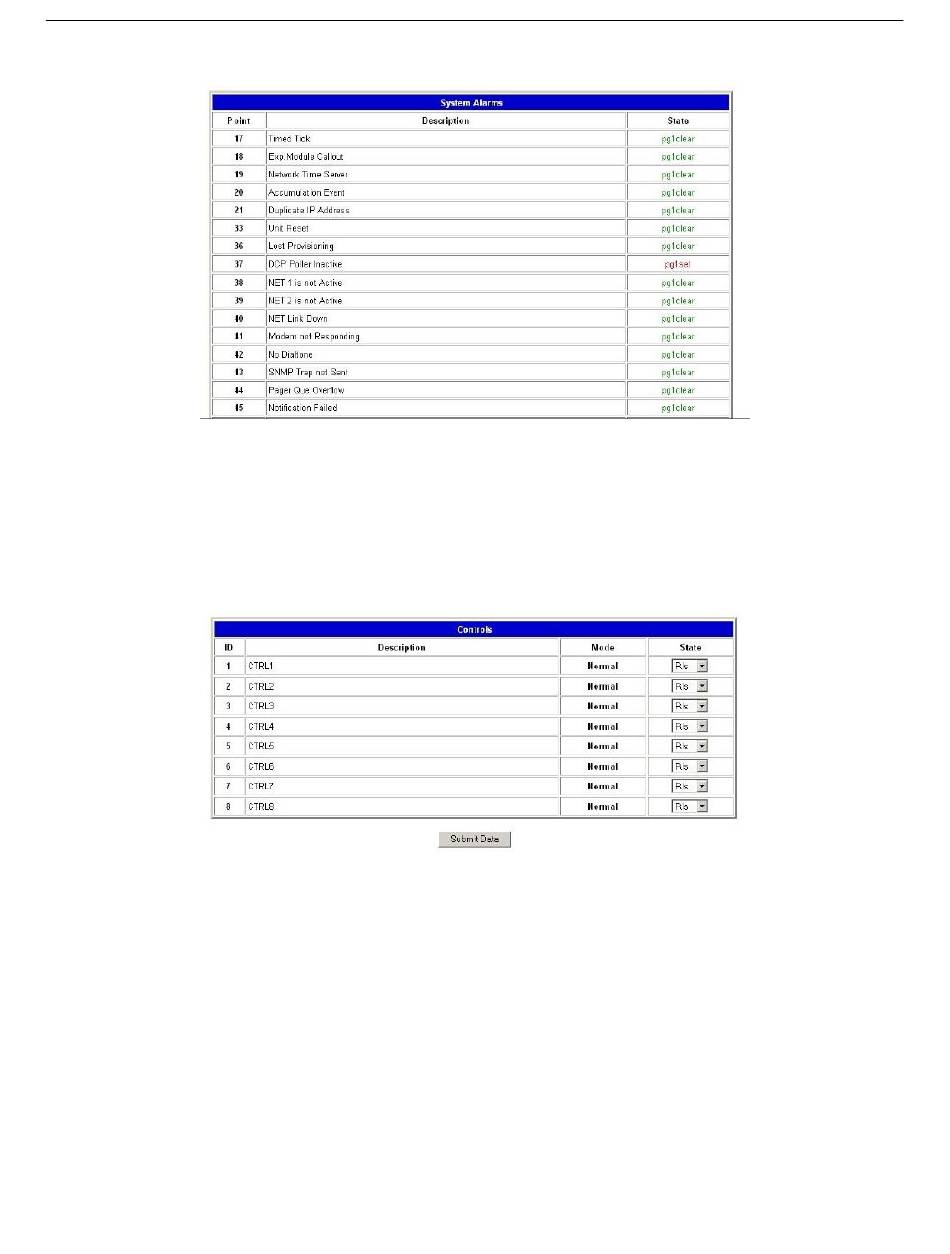

Fig.3.6. View the status of the System Alarms from the Monitor > System Alarms screen
This selection provides the status of the system alarms by indicating if an alarm has been triggered.
Under the State column, the description defined in Edit menu > Point Groups will appear in red if an
alarm has been activated. The description defined in Edit menu > Point Groups will be displayed in
green when the alarm condition is not present. (Refer to Appendix A for system alarm trap numbers.)
3.8

Operating Controls

Use the following rules to operate controls:
1. Select Controls from the Monitor menu.
2. Under the State field, choose a command (Opr - operate, Rls - release, or Mom - momentary).
3. Click Submit Data to issue the control.
The control relay's normal state - open or closed - is determined by a PCB jumper. Operating a control
thus changes the normal state of the relay (energizes it) until it is released (de-energized). The
momentary command energizes the relay for approximately one second before it is released again. Use
the event qualifiers to extend the momentary period.
Fig. 3.7. Issue controls from the Monitor > Controls screen
