36
2.7

Defining Point Groups

Each NetGuardian Alarm point can be assigned to one of eight groups, which are identified with a user-
defined label. Once the point groups are defined, the Point Group IDs can be used to group base and
system alarms, see section "Configuring Base Discrete Alarms."
Use the following steps to define alarm messages for alarm point groups:
1. To define the point groups, select Point Group from the Edit menu.
2. Then enter the appropriate descriptions in the Description, When Set and When Clear fields for
each point group.
3. Click Submit Data to save the point group settings.

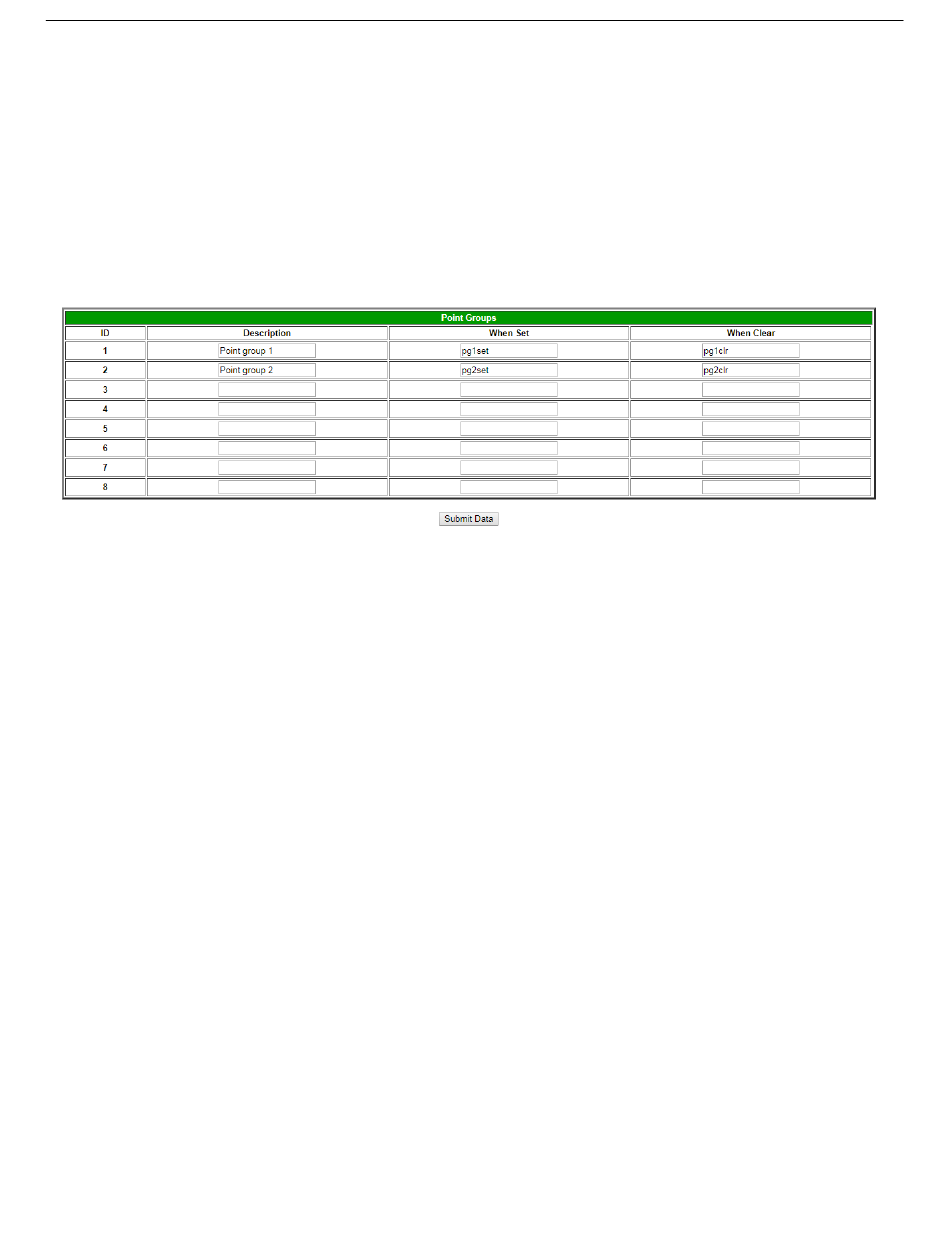

Fig. 2.20. Define the Alarm and Clear messages for up to eight different point groups
