3.1

Alarm Summary Window

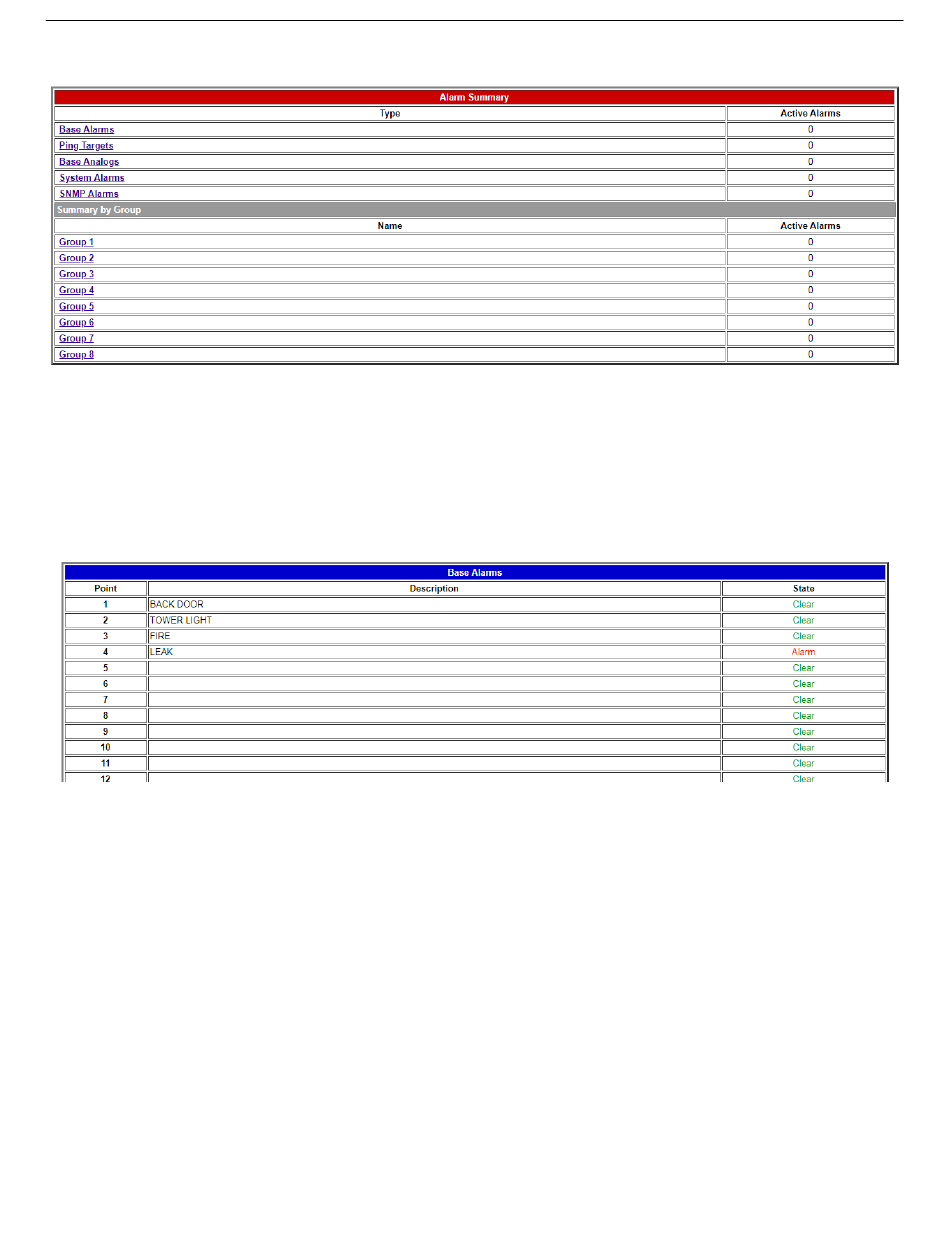

Fig. 3.1. The Alarm Summary display can be accessed by selecting either the Monitor or the Summary
Clicking on the Monitor or Summary buttons shows the Alarm Summary display. The Summary screen
gives you a quick indication of any alarms that have been triggered in the NetGuardian's base alarms,
ping targets, analogs, system alarms, and any NetGuardian discrete expansions.
3.2

Monitoring Base Alarms

Fig. 3.2. View the status of the Base Alarms from the Monitor > Base Alarms screen
This selection provides the status of the system's base alarms by indicating if an alarm has been
triggered. Under the State column, the description defined in Edit menu > Point Groups will appear in
red if an alarm has been activated. The description defined in Edit menu > Point Groups will be
displayed in green when the alarm condition is not present.
