You can view the calibration progress in the D-Wire Sensors Monitor page.
The first part of the calibration should display the qual percentage, followed by the calibration
percentage.
Once calibration finishes, same air flow should result in 100%.
2.15.2

D-Wire Sensors (Optional)

If this NetGuardian G5 has support for D-Wire sensors, a link will appear in the Edit menu sidebar. The
interface will resemble the Edit > Base Analogs menu, but with two new columns: ROMID and Freq.
Any detected or configured sensor will automatically fill out a ROMID cell. The color of each cell will
signify its configuration status: If the ROMID cell is yellow, the sensor is detected but is not yet
configured. If the cell is red, then the sensor is configured but has not been detected, and the "D-Wire
Sensor Not Detected" System Alarm will set. The "Unit" field will automatically be configured upon
submission, no changes should be made to this field for D-Wire sensors. The Freq. column
determines how often (in minutes) the unit logs each sensor to a .csv file.
Note: The page must be submitted in order to configure the detected ROMID(s). It may take up to one
minute for a newly attached sensor to register in the Edit or Monitor interface.

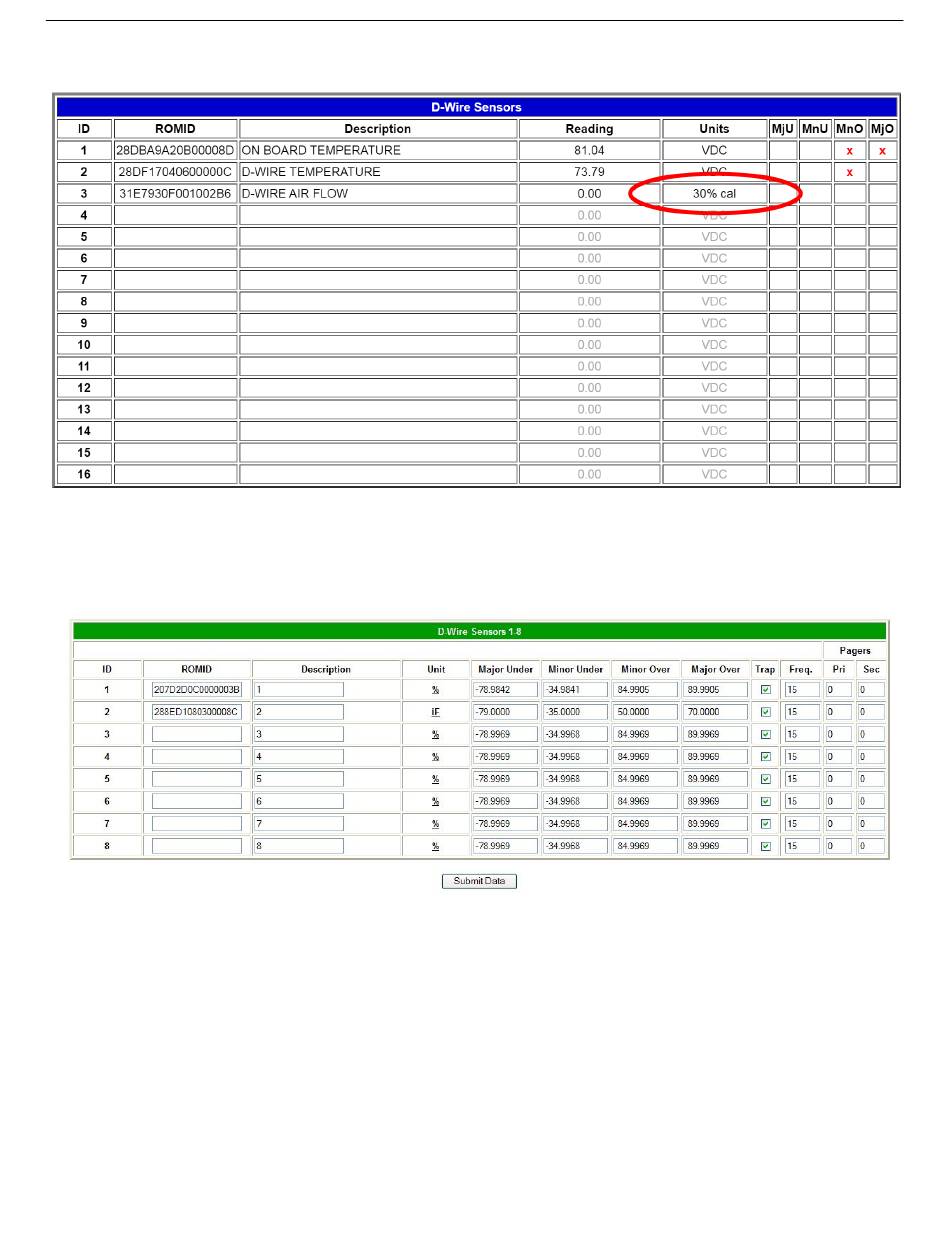

Fig. 2.28. D-Wire Sensors menu
