Programming User
Functions
4-12
As explained in Entering Constants and User Functions on page 3-9,
user functions enable operators to program up to four desired
equations on each channel, or to use any measured parameter to
calculate a different parameter. PanaView allows users to program or
change user functions and related tables through the PC.
To program a user function:
1. From the "New Meter Browser" option, click on the desired
communications port, meter, and channel.
2. Click on "User Functions," and then double-click on the desired
function (1 to 4). The right side of the screen appears similar to
Figure 4-8 below.
3. Enter three parameters:
•
a function label (of no more than 16 characters)
•
a function symbol (no more than 4 characters), and
•
the number of decimal places desired.
4. To incorporate an existing parameter, pull down the network
menu and click on the desired channel, sensor and display unit.

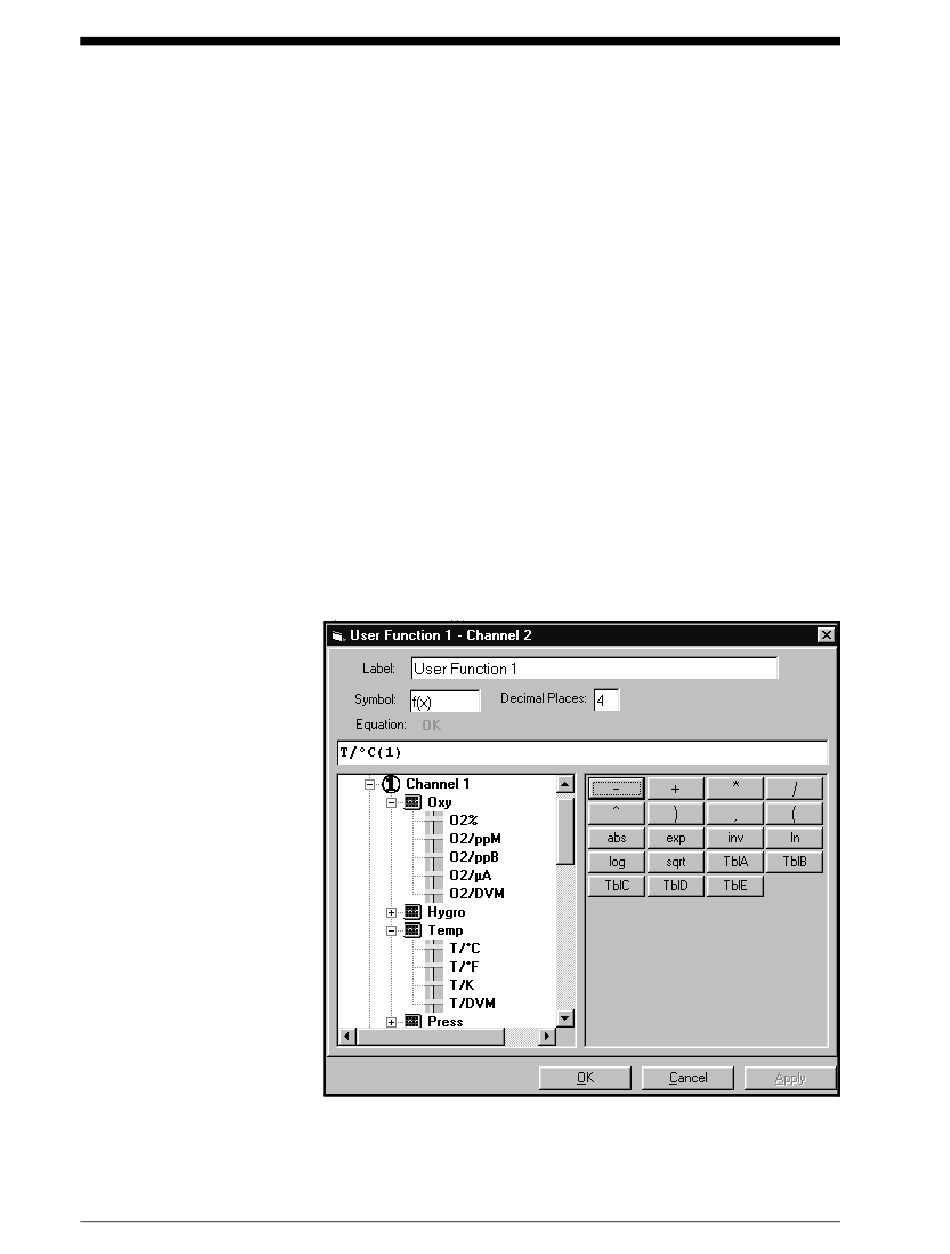

Figure 4-8: The User Function Window
