Changing Recorder
Settings

Setting Recorder Values

Programming with PanaView
You can also change the settings of a recorder attached to the Series
1: the input type, zero and span values, and how it performs error
handling.
1. From the "New Meter Browser" option, click on the desired meter
and channel.
2. From the channel menu, click on the "Recorders" option, and then
on "Recorder A" or "Recorder B." The Recorder Properties
window appears, as shown in Figure 4-5 below.
3. To set the recorder type, pull down the "Type" list box and click
on one of the three choices: 0 to 20 mA, 4 to 20 mA and 0 to 2 V.
4. To set the recorder unit, pull down the "Sensor/Class" list box and
click on the desired sensor. Then pull down the "Unit" list box
and select from the available units.
5. To establish the input settings, enter the desired values in the
"Zero" and "Span" text boxes.
6. Click on [ ] to apply the changes immediately, and on [
Apply
confirm the changes and close the window. To return the window
to its previous settings, click on the [

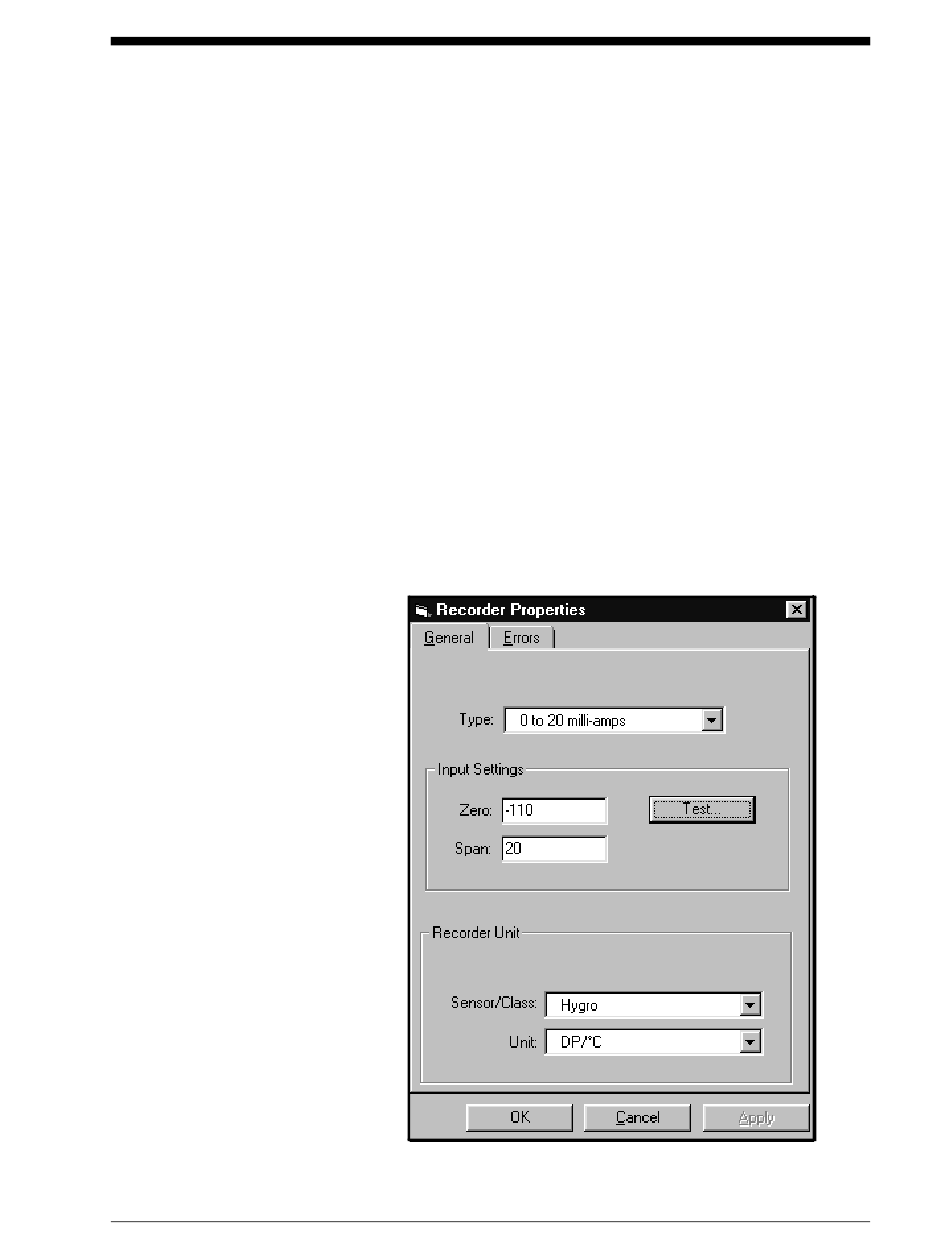

Figure 4-5: Recorder Programming Window
April 2004
OK
] button.
Cancel
] to
4-9
