The shaded area in Figure 2-15 represents the indicator area. When
you program the Series 1 with constants or use Enhanced Response, a
symbol appears in this area. A "K" indicates a constant is being used
in the measurement and an "E" indicates the meter is using Enhanced
Response to determine the measurement. An example of a
measurement using a constant and Enhanced Response activated is
shown in Figure 2-16 below.
The value is expressed in the units selected for a desired measurement
mode.
Measurement
Channel
Number
5 H O
2
123.45
Value

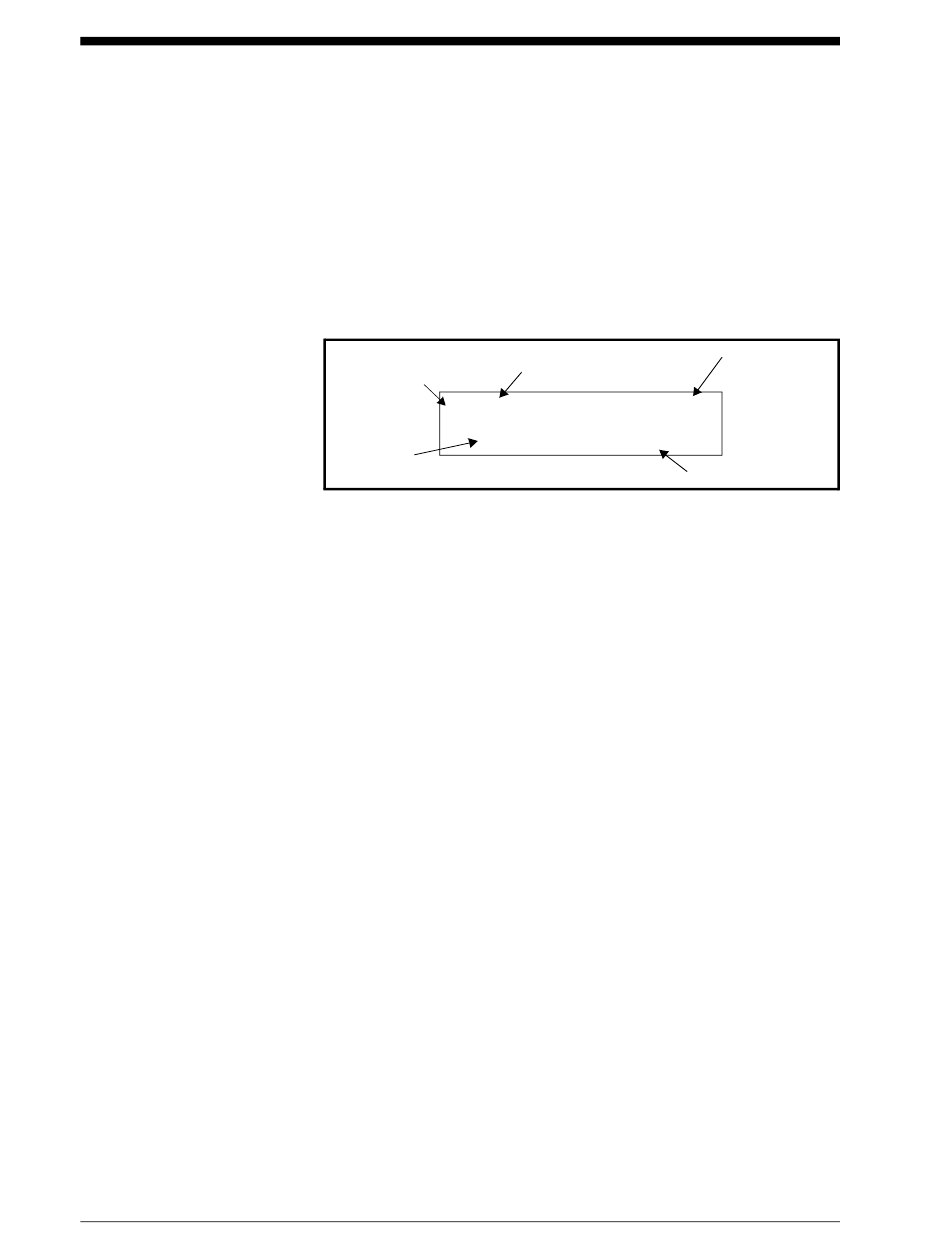

Figure 2-16: Example of a Displayed Measurement
Mode
E K
PPMw
Units
Basic Programming
Indicators
