Entering Data into the
User Program
2-4
The Series 1 has a user program that enables you to enter data to set
up alarms, recorders, and probes, as well as its other features.
The user program consists of the following four main menus (refer to
Figures 3-17 and 3-18, pages 3-31 and 3-32, for menu maps of the
user program):
•
HELP - provides on-line help for the various menus of the
user program.
•
SELECT - lets you select the type of measurement and units to
display.
•
SETTINGS - enables you to set up recorders and alarms, as well as
enter probe data for basic operation. (To enter this menu you must
enter the passcode. See page 2-6.)
•
OPTIONS - enables you to set up the screen to display
measurements in text or graphical form. It is also used to perform
advanced functions.
You can use the screen, four menu keys, and the keypad to enter data
into the unit (see Figure 2-2 below).
Screen
P O W E R

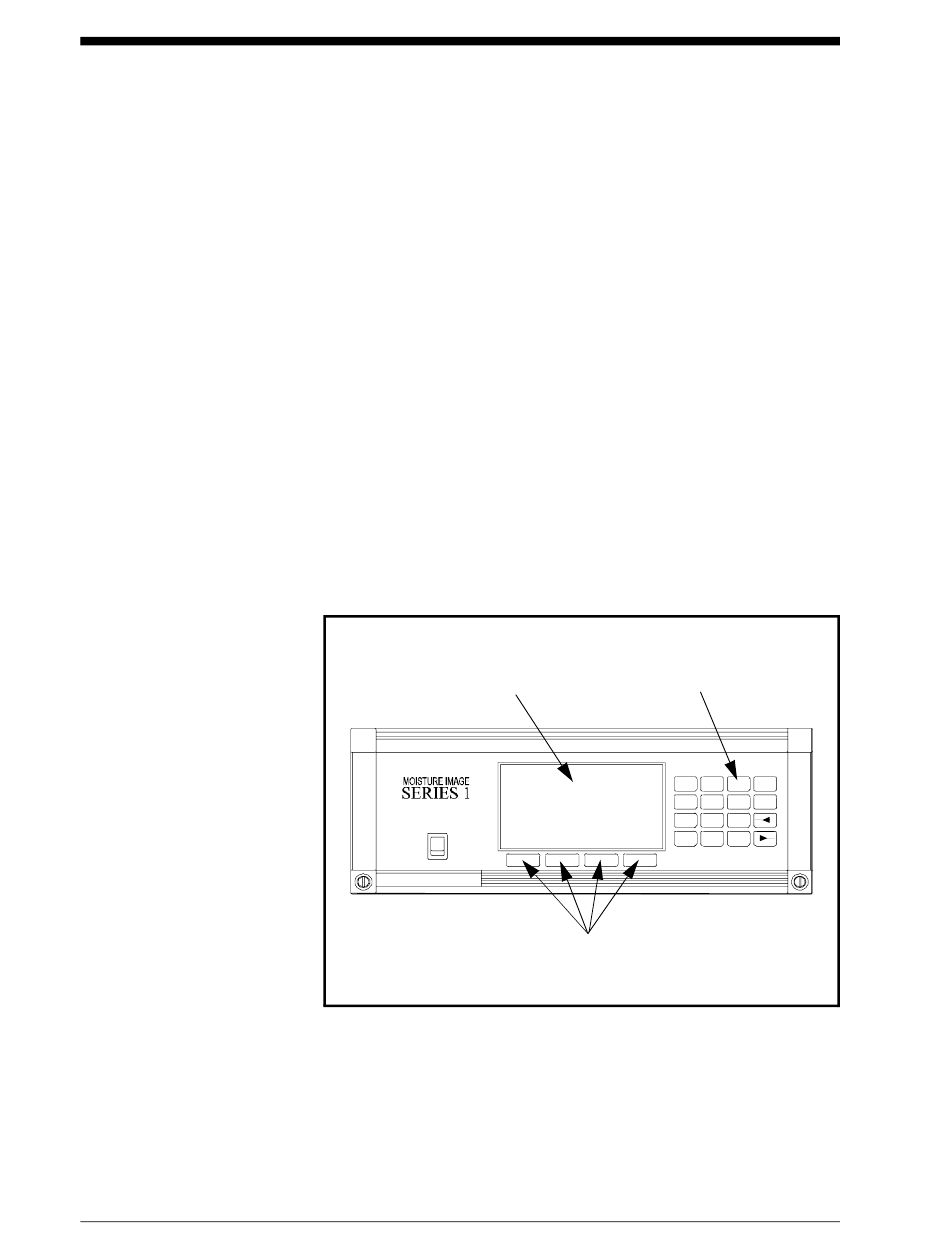

Figure 2-2: The Moisture Image Series 1 Front Panel
Keypad
1 2
4 5
8
7
- 0
Menu Keys
Basic Programming
3 Y E S
6 N O
9
.
