Electronics Unit (cont.)
LCD Screen
P O W E R

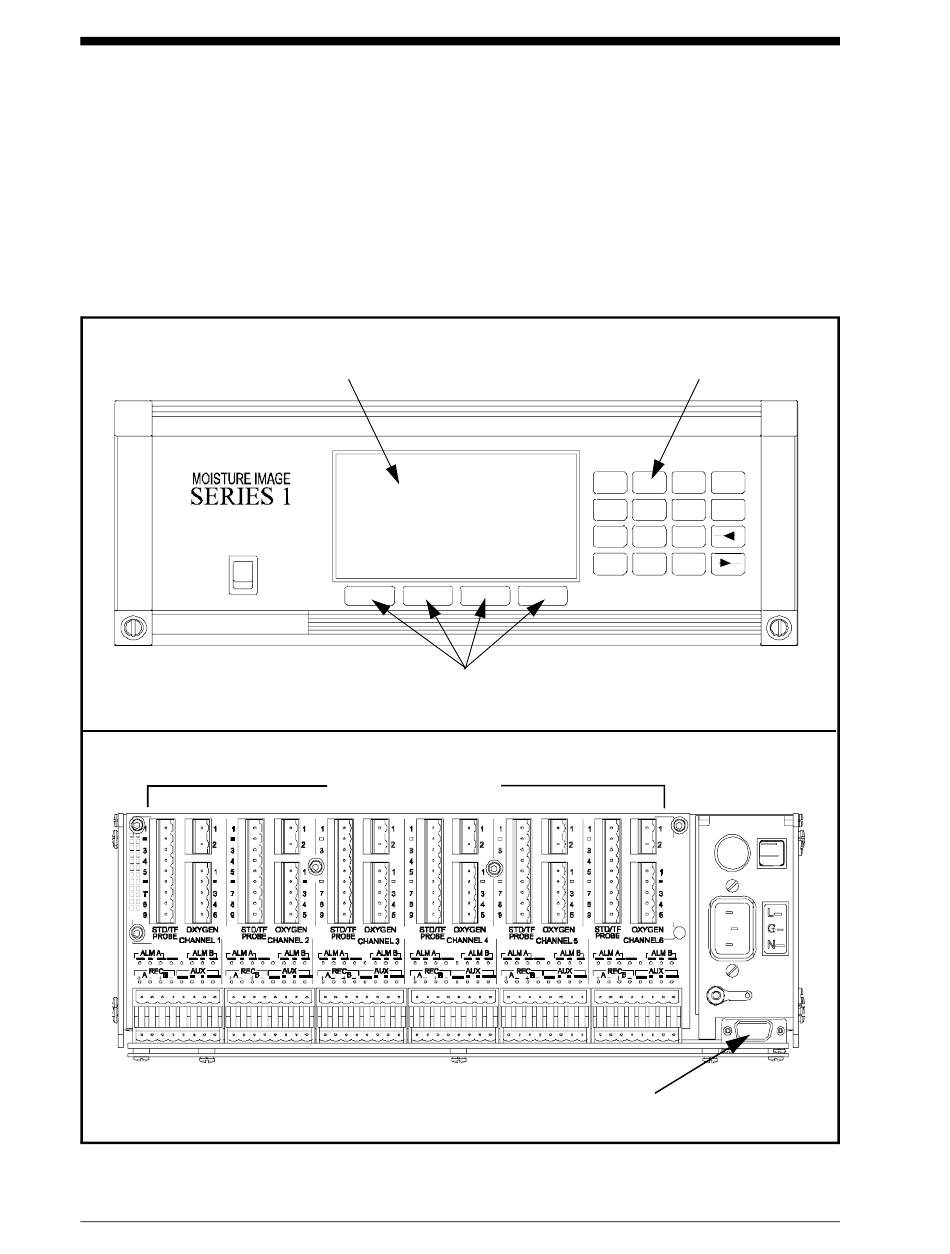

Figure 1-1: The Series 1 Electronics Unit Features
1-2
The front panel also has a 16-key keypad that is used to enter data and
operate the Series 1. There are four menu keys below the LCD, as
shown in Figure 1-1 below. The function of a menu key is indicated
directly above it on the LCD. The menu key functions change as the
user makes menu selections.
The electronics unit with all these features is available in a rack
mount, bench mount, panel mount, weatherproof, or explosion-proof
versions.
Menu Keys
Terminal Blocks
Keypad
1 2 3
Y E S
4 5 6 N O
8 9
7
.
- 0
RS232 Port
Features and Capabilities
1 2
2 5 0
3
