5. Select Connection tab, and click Connect to connect device. If the device is detected, there
will be a device name displayed in the right side of Device.
6. You can click Snap to acquire single frame image, and click Live to acquire images continuously.
In Graphics Window, you can obtain image information.
7. Select Parameters tab in Image Acquisition interface to set specific image parameters.
X86 Open Platform

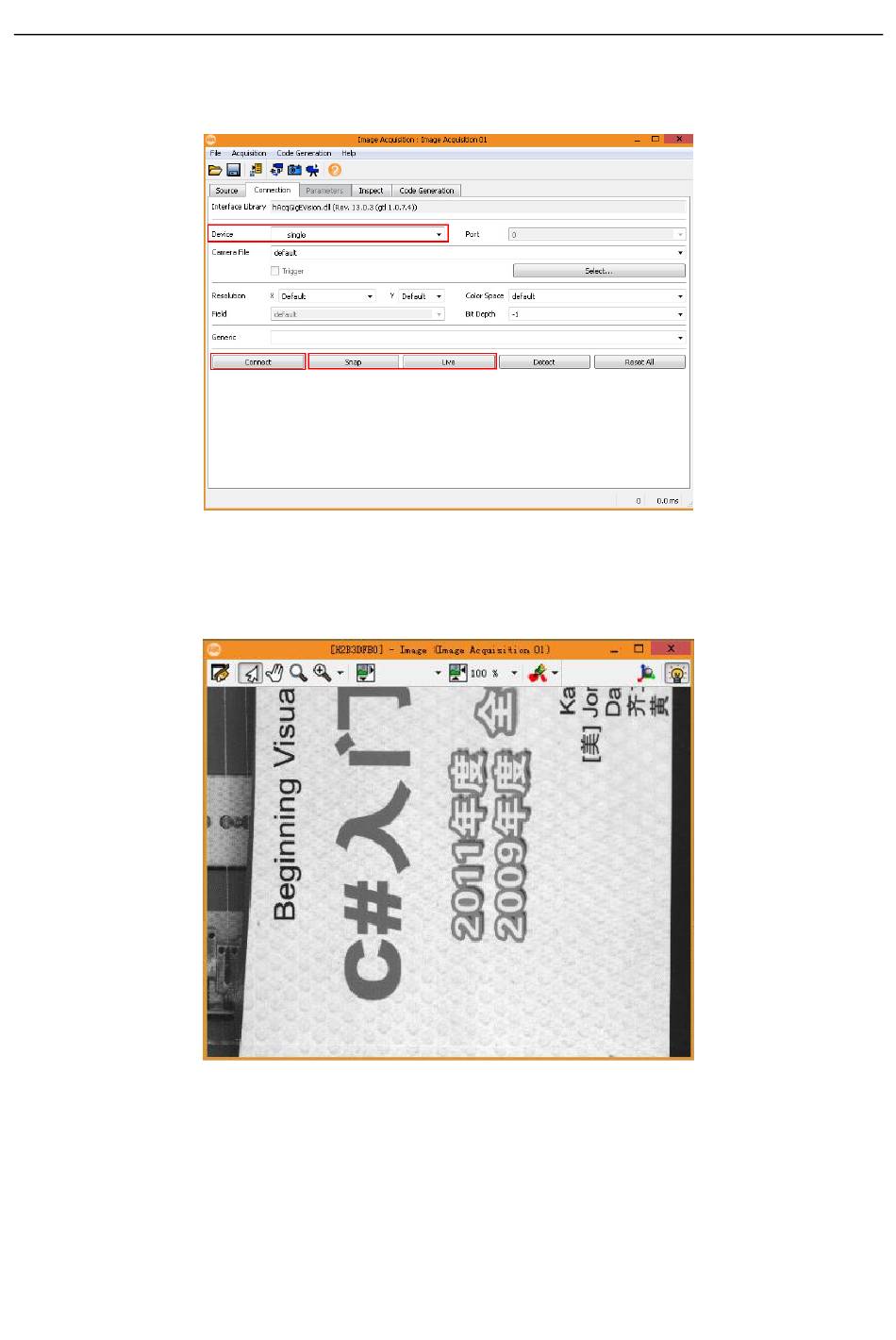

Figure 10-13 Connect Device
Figure 10-14 Obtain Stream via Halcon Software
