X86 Open Platform User Manual
·

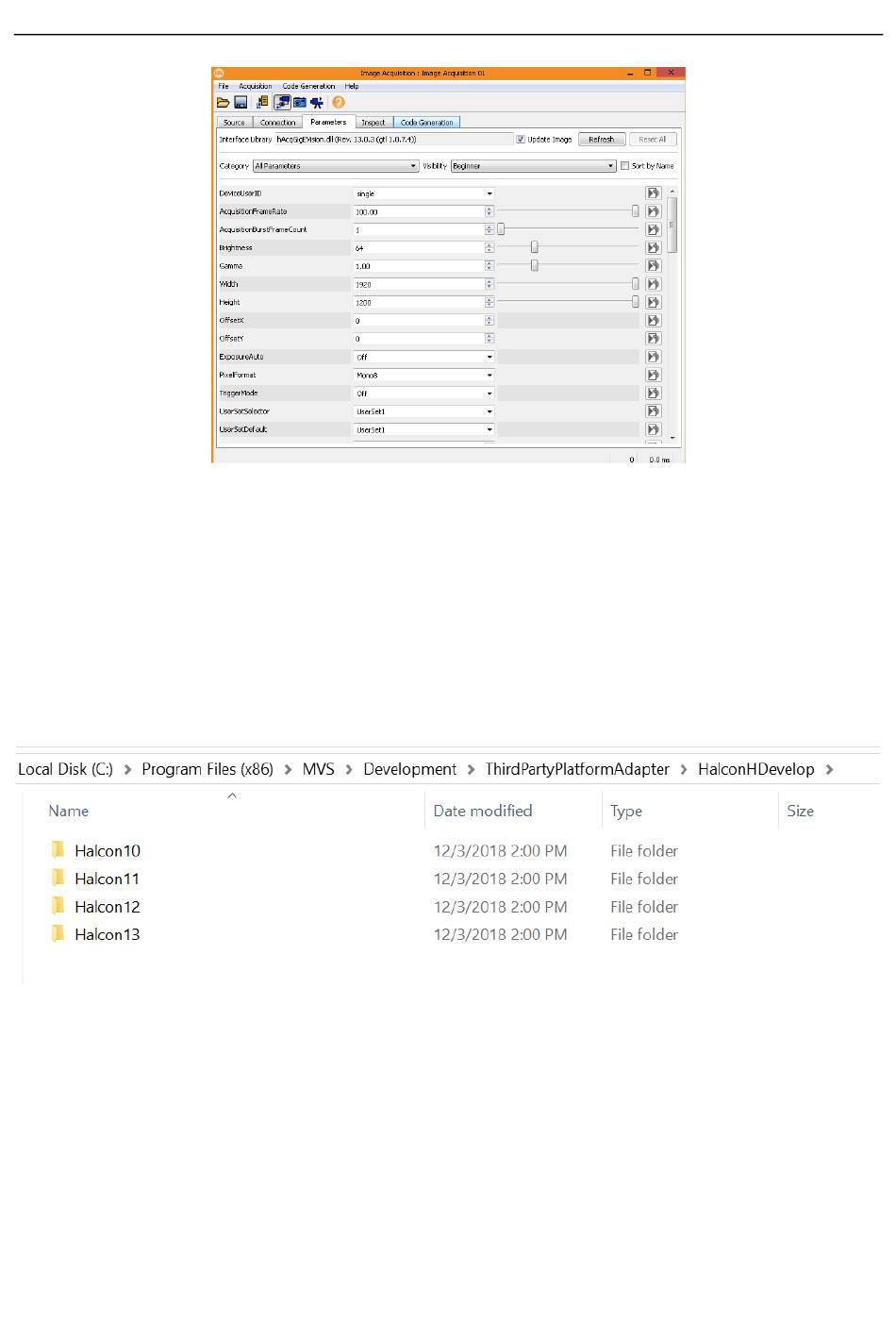

Figure 10-15 Set Image Parameters
When installing the software into X86 open platform, you can use Halcon software to obtain
stream as follows.
Steps:
1. Right click MVS icon, and select Open file location.
2. Go to MVS\Development\ ThirdPartyPlatformAdapter\HalconHDevelop, and select
hAcqMVision.dll file according to Halcon version and computer operation system.
Figure 10-16 Find HAcqMVision.dll File
3. Install hAcqMVision.dll file into the Halcon software installation directory.
4. After installing, open Halcon software, and enter Image Acquisition interface.
5. Select Source tab, and select MVision, as shown below.
