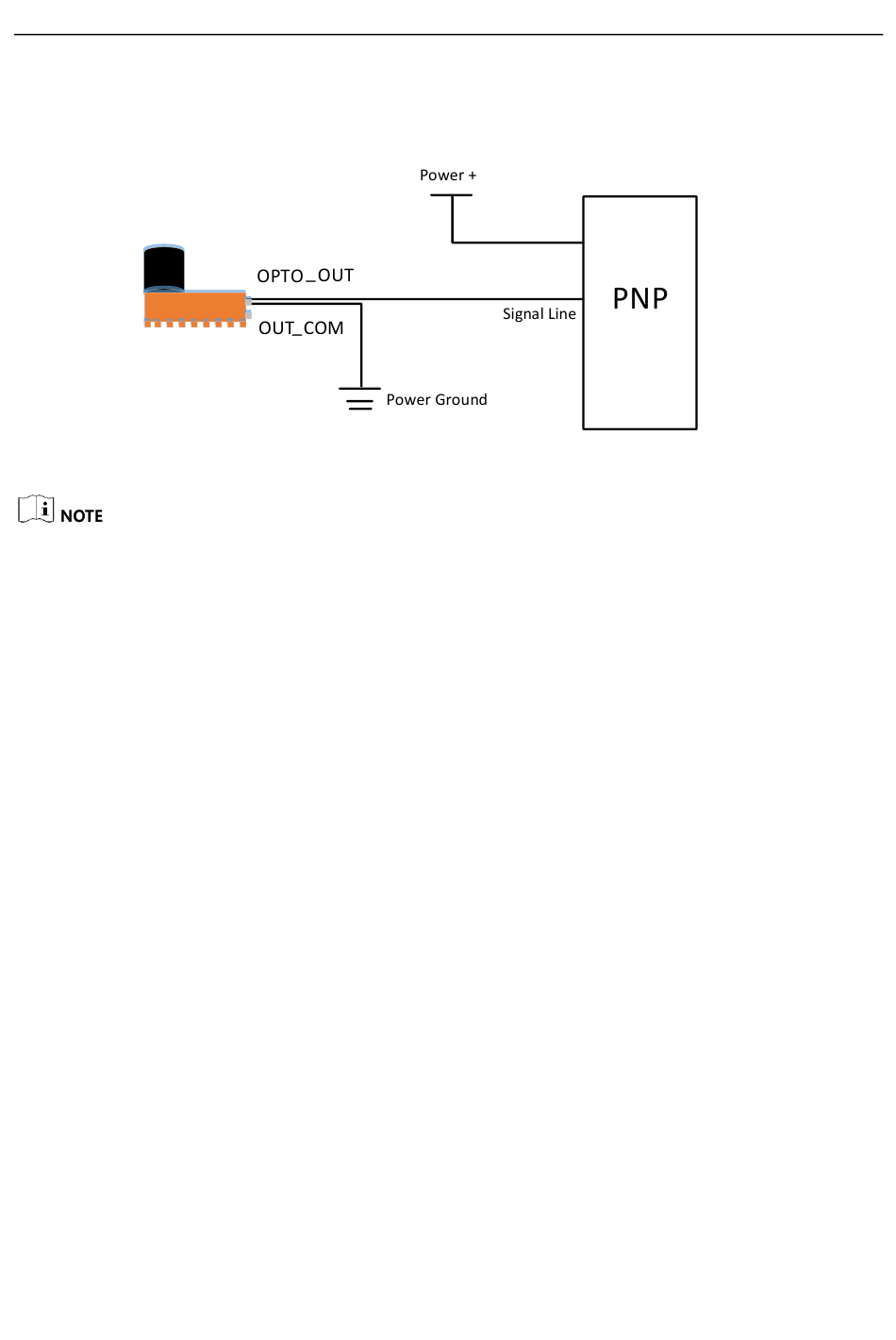

If the output device is PNP signal (suspended or power positive), the OUT_COM should
be connected with input device power negative, and signal line with corresponding
input interface.
Do not directly connect with inductive load (e.g. relay, DC motor, etc.) when outputting.
X86 Open Platform
Figure 7-6 Connecting to PNP Device
