5.4.2 Set Burst Frame Count

Steps:
1. Click Image Setting > Acquisition Burst Frame Count.
2. Enter proper value according to actual demands, and its range is from 0 to 1023.
When Burst Frame Count= 3, 1 trigger signal outputs 3-frame image. The sequence diagram of
burst frame count is shown below.
Trigger
delay
Exposure 1
Exposure 2
Exposure 3

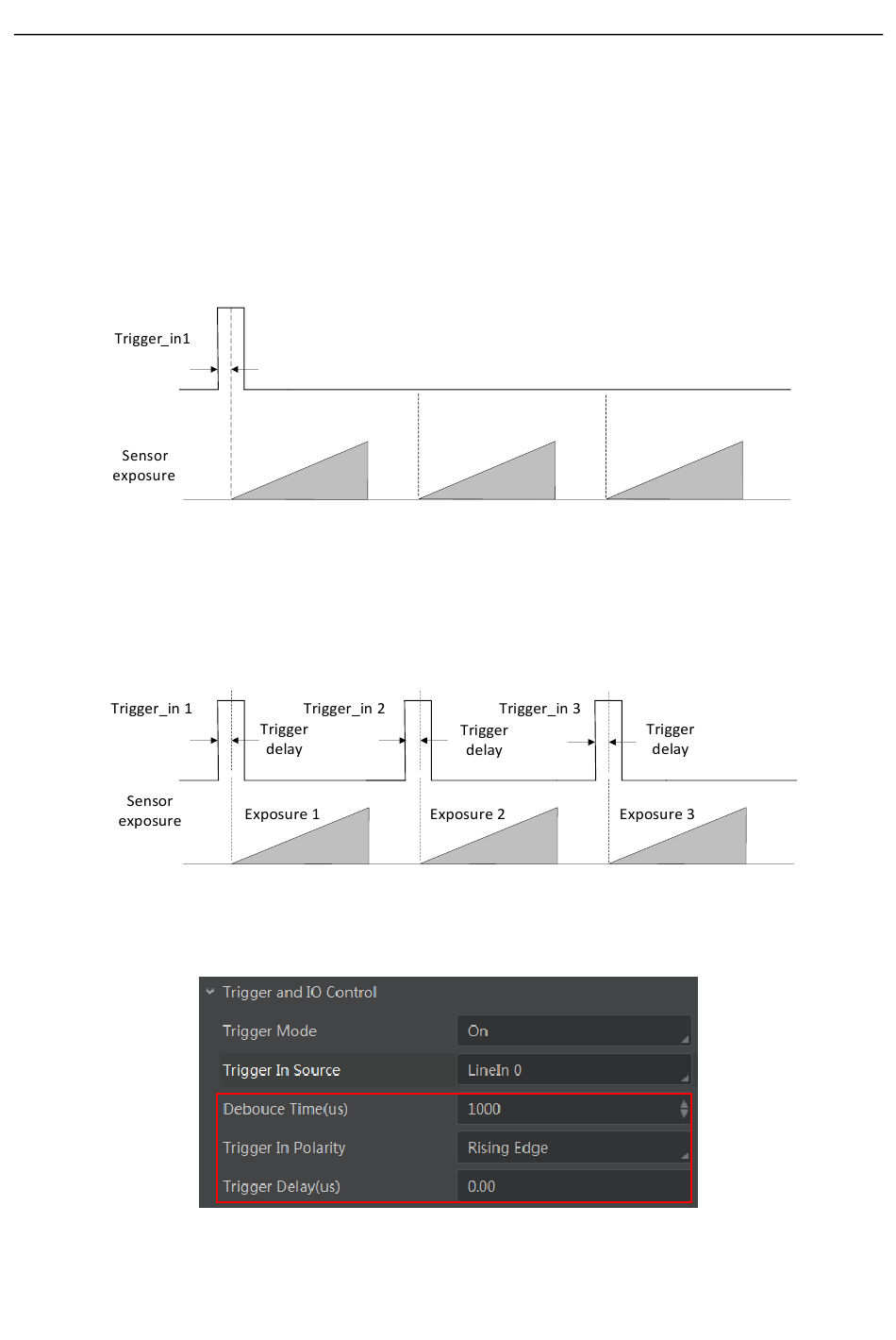

Figure 5-5 Sequence Diagram of Burst Frame Count

5.4.3 Set Trigger Delay

From the device receiving signal and responding, this period is trigger delay. Its sequence diagram
is shown below.
Figure 5-6 Signal Delay Sequence Diagram
You can set proper value in Trigger Delay, and its range is from 0 μs to 16000000 μs.
Figure 5-7 Set Trigger Delay
