Chapter 8 Image Parameter

8.1 Set Frame Rate

You can set frame rate as shown below.
Steps:
3. Click Image Setting > Acquisition Frame Rate.
4. Enter frame rate according to actual demands.

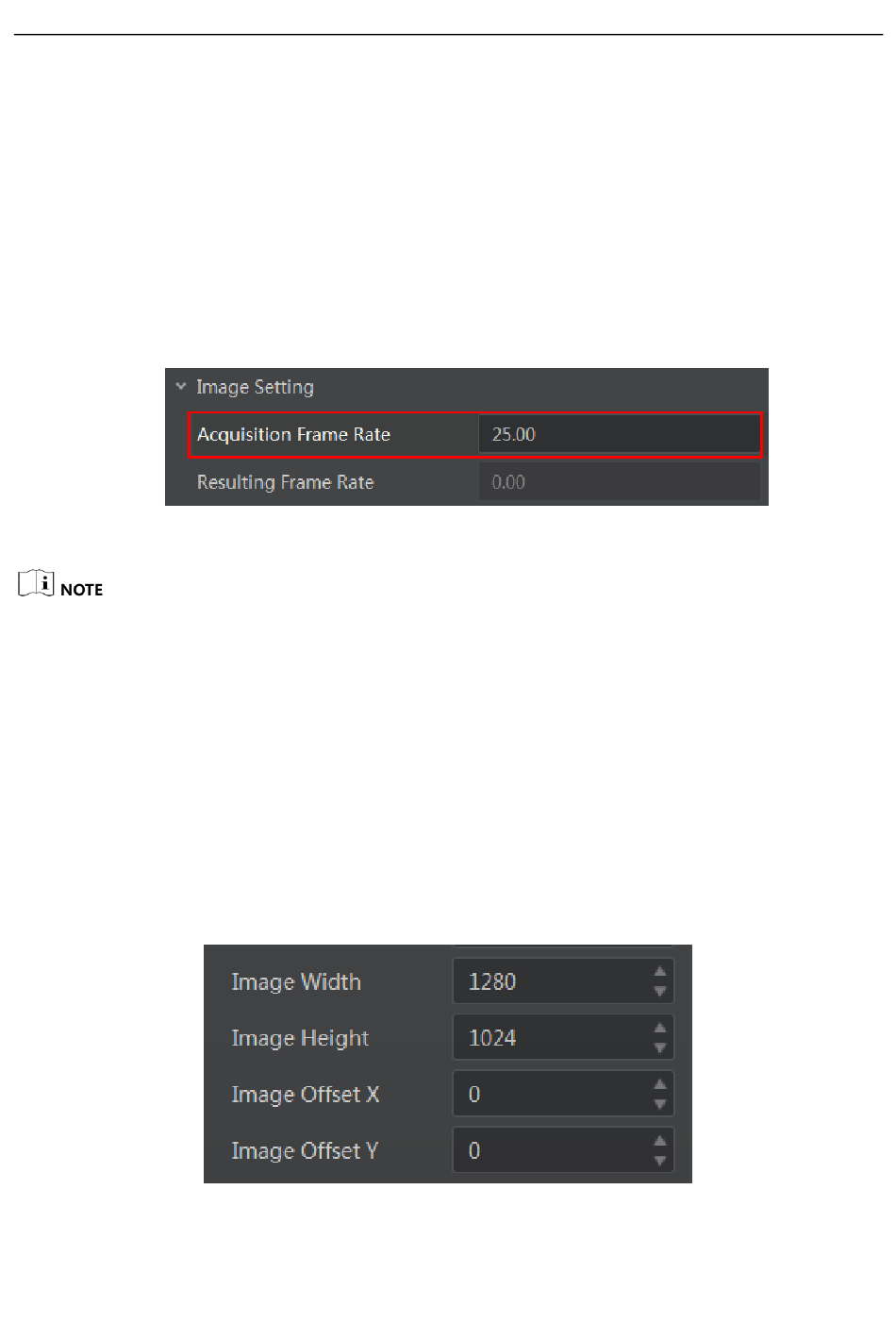

Figure 8-1 Set Frame Rate
The Resulting Frame Rate displays the device's real-time frame rate.

8.2 Set ROI

If you are only interested in a certain region of the image, you can set a Region of Interest (ROI) for
the device. Setting ROI can reduce the bandwidth of the image being transmitted. Thus increasing
the frame rate to some extent.
Steps:
1. Click Image Setting, and find Image Width, Image Height.
2. Enter proper value in Image Width and Image Height according to actual demands.
Figure 8-2 Set ROI
