For specific indicator functions, please refer to following table for details.
No. Name
1 Off
Who Am I
2
System Running
3
4 Be Triggered
5 Line0 Out
6 Line1 Out
7 Line2 Out
Line3 Out(Build-in Light) When Light port outputs and connects to a light source
8
It is not recommended to change the default status of User2 LED indicator.
X86 Open Platform

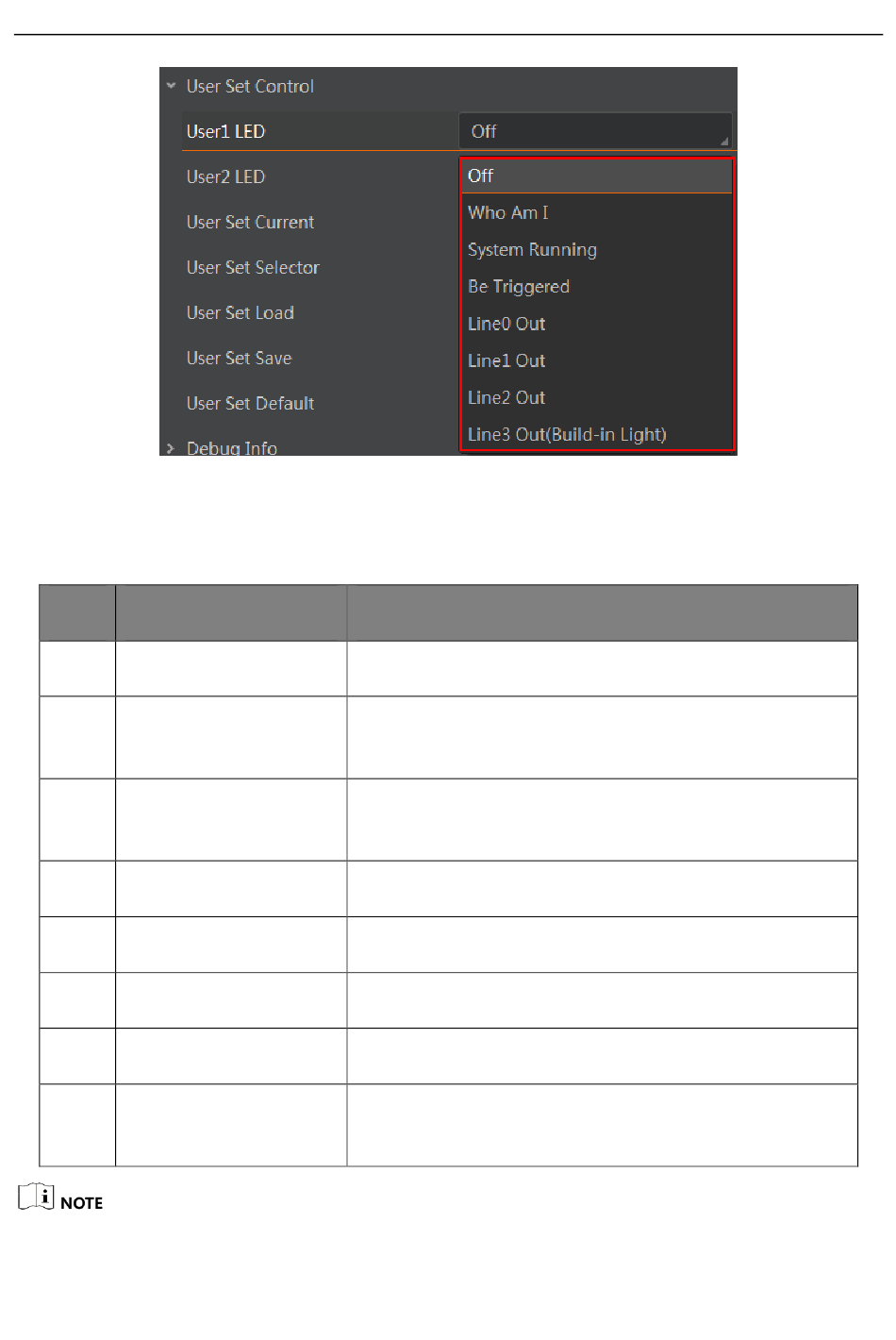

Figure 9-6 Set Indicator
Table 9-1 Indicator Function Description
Description
It refers to disable this function.
When selected, click Execute, and indicator flashes
once. You can see which device you are operating.
When the device is running properly, the indicator
keeps flashing.
When trigger signal inputs, indicator flashes once.
When Line0 Out outputs signal, indicator flashes once.
When Line1 Out outputs signal, indicator flashes once.
When Line2 Out outputs signal, indicator flashes once.
device, indicator flashes once.
