Step 17 : Uninstall the System Fan base.

a. Slide the system fan base up and over the CPUs until clear of the CPUs. Set the system

fan base to the side with cables still attached. The cables are long enough to remain

connected during these steps.

b. Locate and remove the LED brackets that are attached to the Heat Sink.

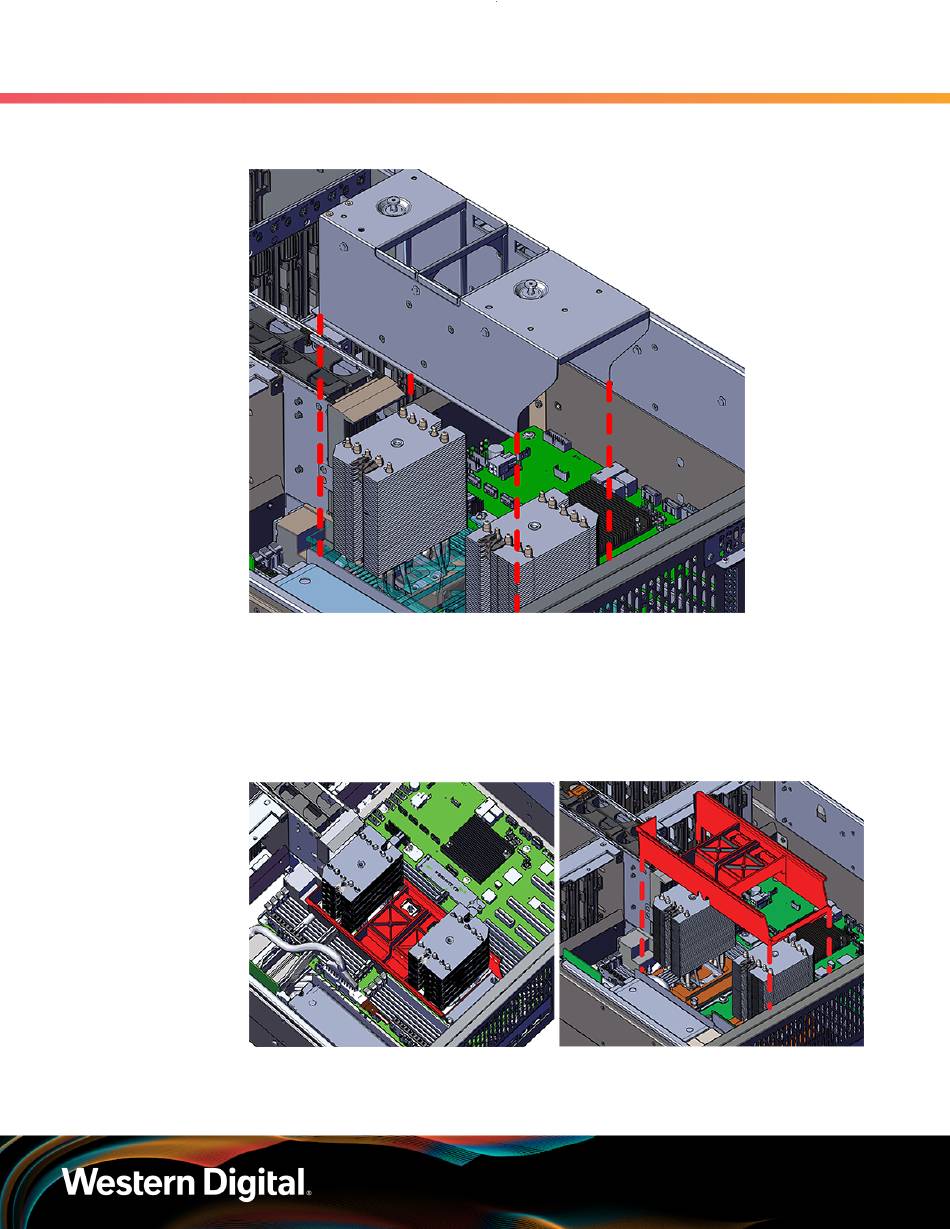

Figure 168: Removing the System Fan Bay

Figure 169: Removing the System Fan Base (highlighted in red)

4. Part Replacement

4.9 Heat Sink Replacement
